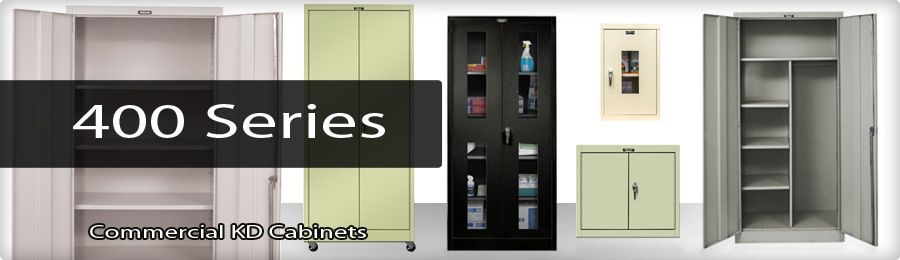

400 Series
Commercial KD Cabinets
Description:
22 Gauge body
22 Gauge Shelves adjust on 2" center
22 Gauge door with 16 Gauge frame
16 Gauge continuous piano hinge (405 Wall mount uses concealed hinge pin)
200 lb shelf capacity
Doors include key lock and 3-point turn handle
 |
 |
 |
 |
 |
| Solid Door | Safety View | Ventilated | Wall Mount | Mobile |
Stock Colors:
Parchment
[PT]
Hallowell Gray
[HG]
Midnight Ebony
[ME]
| Description | W | D | H | Knock Down Catalog # |
Assembled Catalog # |
| Solid Door Cabinets | |||||
|---|---|---|---|---|---|

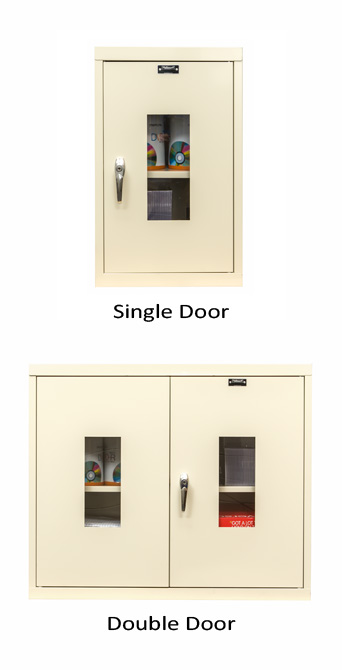

| Wall Mount, Storage | 16 | 12 | 26 | 405-1626 | 405-1626A |
| 30 | 12 | 26 | 405-3026 | 405-3026A | |
| 36 | 12 | 30 | 405-3630 | 405-3630A | |
| Stationary, Storage | 36 | 18 | 72 | 415S18 | 415S18A |
| 36 | 24 | 72 | 415S24 | 415S24A | |
| 48 | 18 | 72 | 425S18 | 425S18A | |
| 48 | 24 | 72 | 425S24 | 425S24A | |
| Stationary, Wardrobe | 36 | 18 | 72 | 435W18 | 435W18A |
| 36 | 24 | 72 | 435W24 | 435W24A | |
| 48 | 18 | 72 | 445W18 | 445W18A | |
| 48 | 24 | 72 | 445W24 | 445W24A | |
| Stationary, Combination | 36 | 18 | 72 | 455C18 | 455C18A |
| 36 | 24 | 72 | 455C24 | 455C24A | |
| 48 | 18 | 72 | 465C18 | 465C18A | |
| 48 | 24 | 72 | 465C24 | 465C24A | |
| Mobile, Storage | 36 | 24 | 72 | 415S24M | 415S24MA |
| 48 | 24 | 72 | 425S24M | 425S24MA | |
| Safety View Door Cabinets | |||||
| Wall Mount, Storage | 16 | 12 | 26 | 405-1626SV | 405-1626SVA |
| 30 | 12 | 26 | 405-3026SV | 405-3026SVA | |
| 36 | 12 | 30 | 405-3630SV | 405-3630SVA | |
| Stationary, Storage | 36 | 18 | 72 | 415S18SV | 415S18SVA |
| 36 | 24 | 72 | 415S24SV | 415S24SVA | |
| 48 | 18 | 72 | 425S18SV | 425S18SVA | |
| 48 | 24 | 72 | 425S24SV | 425S24SVA | |
| Stationary, Wardrobe | 36 | 18 | 72 | 435W18SV | 435W18SVA |
| 36 | 24 | 72 | 435W24SV | 435W24SVA | |
| 48 | 18 | 72 | 445W18SV | 445W18SVA | |
| 48 | 24 | 72 | 445W24SV | 445W24SVA | |
| Stationary, Combination | 36 | 18 | 72 | 455C18SV | 455C18SVA |
| 36 | 24 | 72 | 455C24SV | 455C24SVA | |
| 48 | 18 | 72 | 465C18SV | 465C18SVA | |
| 48 | 24 | 72 | 465C24SV | 465C24SVA | |
| Mobile, Storage | 36 | 24 | 72 | 415S24SVM | 415S24SVMA |
| 48 | 24 | 72 | 425S24SVM | 425S24SVMA | |
| Ventilated Door Cabinets | |||||
| Stationary, Storage | 36 | 18 | 72 | 415S18EV | 415S18EVA |
| 36 | 24 | 72 | 415S24EV | 415S24EVA | |
| 48 | 18 | 72 | 425S18EV | 425S18EVA | |
| 48 | 24 | 72 | 425S24EV | 425S24EVA | |
| Stationary, Wardrobe | 36 | 18 | 72 | 435W18EV | 435W18EVA |
| 36 | 24 | 72 | 435W24EV | 435W24EVA | |
| 48 | 18 | 72 | 445W18EV | 445W18EVA | |
| 48 | 24 | 72 | 445W24EV | 445W24EVA | |
| Stationary, Combination | 36 | 18 | 72 | 455C18EV | 455C18EVA |
| 36 | 24 | 72 | 455C24EV | 455C24EVA | |
| 48 | 18 | 72 | 465C18EV | 465C18EVA | |
| 48 | 24 | 72 | 465C24EV | 465C24EVA | |
| Mobile, Storage | 36 | 24 | 72 | 415S24EVM | 415S24EVMA |
| 48 | 24 | 72 | 425S24EVM | 425S24EVMA | |
