Superior Lockers
  America's Most Complete Locker Line
Superior - HDC - Heavy Duty Corridor Lockers
Greenguard Gold Certified - Children & Schools
Production Item
24 Powder Coat Colors to choose from
KD Construction - Knock Down
Full Length Piano Hinge
2 Year Warranty
Heavy-Duty Corridor KD Info

More Info:

Deep-drawn stainless steel handle with gravity lift-type latching

Standard:

Deep-drawn stainless steel handle with gravity lift-type latching


12 gauge latch hook is welded to frame

Standard:

12 gauge latch hook is welded to frame


continuous piano hinge

Standard:

continuous piano hinge


MAX OPTION upgrade
Uprades all body components to 16 gauge with 18 gauge back. Recommended when placing heavy items in lockers such as backpacks.

Upgrade to PREMIER SERIES

UPGRADE TO PREMIER SERIES:

include a 3" wide 18 gauge full height door stiffener. A 1-1/2"wide stiffener will be furnished with 9" wide Premier doors.

Superior - HDC - Heavy-Duty Corridor Lockers

Heavy-Duty Corridor (HDC) KD Wardrobe Lockers

25% heavier than standard KD





Heavy-Duty Corridor lockers, commonly known as HDC lockers, are designed to include all the great features of our Classic KD wardrobe lockers; however, the door gauge is increased to 14 gauge which is 25% heavier than standard 16 gauge doors. To further increase door integrity, we offer our HDC Premier model which includes an 18 gauge full height door stiffener.

HDC wardrobe lockers are sold in various colors and multiple tier options.

Single Tier

The most practical and commonly used style of locker providing ample height for hanging of full length garments.

Double Tier

Where full length hanging of garments is not required or where space limitations do not allow for use of single tier lockers, double tier lockers offer an economical alternative.

Triple Tier

Triple tier lockers are ideal for use where storage of long garments is not required.

Features:

  • BODY CONSTRUCTION: Knock down (KD) with 24 gauge solid body components
  • DOORS: 14 gauge louvered doors are standard. Plain, Security-Plus, Safety-View and diamond perforated door styles are available
  • FRAME: 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers
  • HANDLE: Deep-drawn seamless stainless steel recessed handle
  • DOOR STRIKE: Continuous vertical door strike at both hinge and latch side
  • LATCHING: 12 gauge latch hooks MIG welded to frame. Gravity lift-type multi-point spring loaded latching:
    • 3-point latching for openings 48" high and higher
    • 2-point latching for openings 20" high thru 36" high
  • HINGES: 16 gauge continuous piano type
  • HOOKS:
    • 2-single hooks and 1-double hook is standard.
    • 1- double hook only for triple tier
    • 1-double and 1 - single hook for 9" wide openings 30" and higher
  • SHELVES: Hat shelf for single tier openings 60" and 72" high
  • NOTES: All production KD lockers are supplied without legs unless otherwise specified
  • WARRANTY: 2 years

Tier

Width

Depth

Opening Height

Frame Height

Single 9", 12", 15", 18", 24" 12", 15", 18", 21", 24" 36", 48", 60", 72" 36", 48", 60", 72"
Double 9", 12", 15", 18" 12", 15", 18", 21", 24" 30", 36" 60", 72"
Triple 9", 12", 15" 12", 15", 18", 21", 24" 20", 24" 60", 72"

Photos:

Three Tier - HDC KD Wardrobe Locker
Two Tier - HDC KD Wardrobe Locker

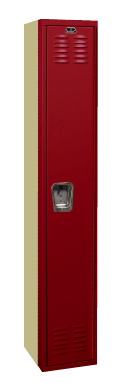

Single Tier Heavy-Duty Corridor Locker
