Superior Lockers
  America's Most Complete Locker Line
Awesome School Lockers - Marquis Booksafe III Unibody All-Welded Corridor Lockers
Greenguard Gold Certified - Children & Schools
Production Item
Body Construction type is Unibody All-Welded
24 Powder Coat Colors to choose from
Full Length Piano Hinge
Lifetime Warranty
Marquis Booksafe III Info

More Info:

Marquis Booksafe III Corridor Lockers come standard with Deep-Drawn Stainless-Steel Handle with Single-Point Latching

Standard:

Deep-Drawn Stainless-Steel Handle with Single-Point Latching


Standard:
11 gauge single-point latch is MIG welded to frame

Standard:

11 gauge single-point latch is MIG welded to frame


Standard: 16 gauge continuous piano hinge

Standard:

16 gauge continuous piano hinge


Full length door stiffener is included in Marquis Booksafe III Corridor lockers

Standard:

A 3" wide 18 gauge full height door stiffener spot welded to the inner door face and MIG welded to the hinge side as well as to the top and bottom door flanges providing a rigid torque-free door. A 1-1/2" wide stiffener will be furnished for 9" wide Marquis Booksafe III doors


optional upgrade: continuous 16 gauge sloptop

Option:

Integral Slope Top is fabricated of heavy 16 gauge steel, runs continuous across
a multiple column unit and is MIG welded at the factory replacing welded locker unit flat top. Sides are sloped at top providing rigid support beneath the
slope top between each locker column.

School Lockers - Marquis Booksafe III Unibody All-Welded Corridor Lockers

Marquis® Booksafe®III -
Unibody All-Welded Corridor Lockers

Double Frame Unibody Construction





The Best School Locker you will ever see, our third generation Marquis® Booksafe® locker now includes reinforced double frame unibody construction and a modern seamless deep-drawn stainless steel recessed handle. The industry's first and best single-point all-welded corridor locker just got better, stronger and more durable. We guarantee it with our lifetime warranty on all Marquis Booksafe III Lockers. Doors are provided without louvers for a clean flush front.

What is Unibody All-Welded?

  • Superior® unibody all-welded corridor lockers include our double vertical frame design adding strength, integrity, durability and visual appeal.
  • First we start with prime grade cold rolled sheet steel. 16 gauge for all body components except backs which are 18 gauge. Doors are heavy 14 gauge.
  • Sides are formed to be an integral part of the front vertical locker frame which locks into the bottom for precise alignment and added strength.
  • We MIG weld an additional channel shaped vertical frame member between doors providing a continuous door strike at both the hinge and latch side of the door.
  • The top and bottom are flanged downward at the front to form a 1-1/2" high channel shaped top and bottom horizontal frame member continuous across the multiple column unit up to 60" wide.
  • The base is a full 1-1/2" high keeping locker contents away from moisture on the floor and/or wood/concrete base.
  • Front-to-back channel stiffeners are welded into the base under each side panel providing a strong anchor bearing surface for installation and increasing overall unit strength.
  • Horizontal tier dividers for double and triple tier models project through to the face of the locker forming a horizontal cross member between doors for maximum strength.
  • Guaranteed in writing by our lifetime warranty.





Features:

  • BODY CONSTRUCTION: All-welded unibody construction, 16 gauge solid sides integral with frame, 16 gauge continuous top, 18 gauge solid back, 16 gauge bottom
  • DOORS:14 gauge plain doors with a 3" wide 18 gauge full height door stiffener are standard. Louvered, Security-Plus and diamond perforated door styles are optional
  • HANDLE: Deep-drawn seamless stainless steel recessed handle with single-point latching
  • DOOR STRIKE: Continuous vertical door strike at both hinge and latch side
  • LATCHING:Single-point maintenance-free quiet latching with 11 gauge MIG welded latch
  • HINGES: 16 gauge continuous piano type is standard. Heavy-duty 13 gauge 3-1/2" 7 knuckle hinges are available as an upgarde
  • HOOKS: 2-single hooks and 1-double hook is standard. 1-double hook only for triple tier and 1-double and 1-single hook for 9" wide openings 30" and higher
  • SHELVES: 16 gauge hat shelf for single tier openings 60" and 72" high, 16 gauge intermediate shelves
  • WARRANTY: Lifetime

  • GREENGUARD Certificates:

    Indoor Air Quality Certificate





Photos:

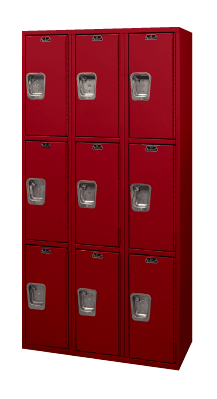

Awesome School Lockers - Marquis Booksafe III - triple tier, 3 wide

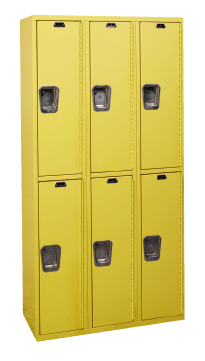

School Lockers - Marquis Booksafe III - double tier, 3 wide

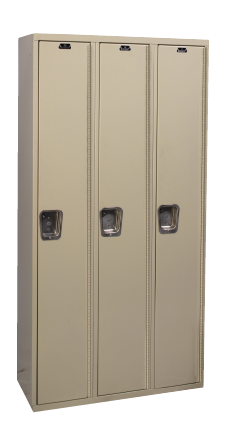

Cool School Lockers - Marquis Booksafe III - single tier, 3 wide
