P.E. Series Fully Framed All-Welded Lockers
Greenguard Gold Certified - Children & Schools
Production Item
Body Construction type is Fully-Framed All-Welded
Safemesh 84
Lifetime Warranty
P.E. Lockers Info




STANDARD:

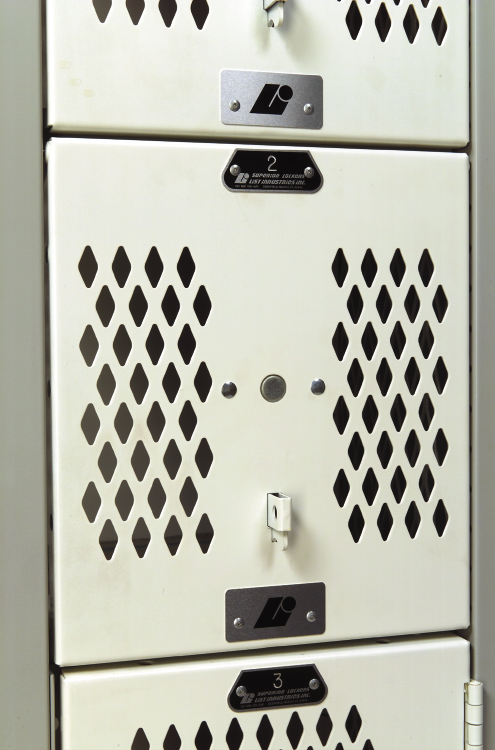

Projecting spring loaded latch is standard on top hinged gym doors only.

Standard:

Projecting spring loaded latch is standard on top hinged gym doors only.


STANDARD:
Top hinged doors with concealed hinge rod are standard for 12 " high and under

Standard:

Top hinged doors with concealed hinge rod are standard for 12" high and under.


STANDARD:

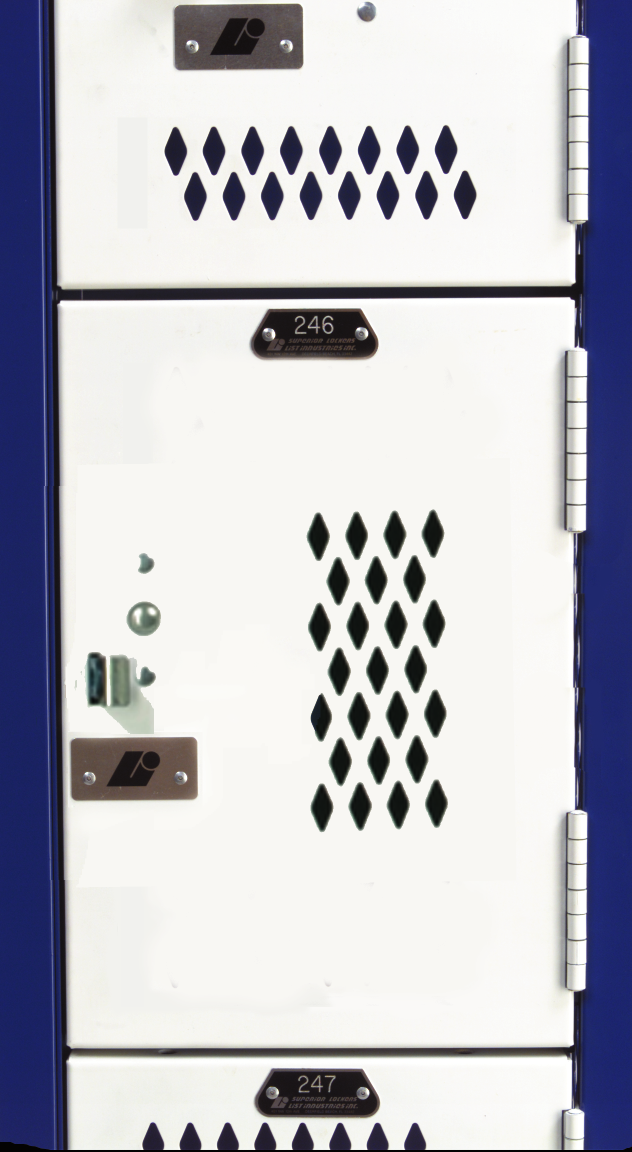

        Side hinged doors are standard for 15" and 18" high.
        OPTIONAL:
        Optional for doors 12" high and under.

Standard:

Side hinged doors are standard for 15" and 18" high.

Optional:

Optional for doors 12" high and under.


STANDARD:

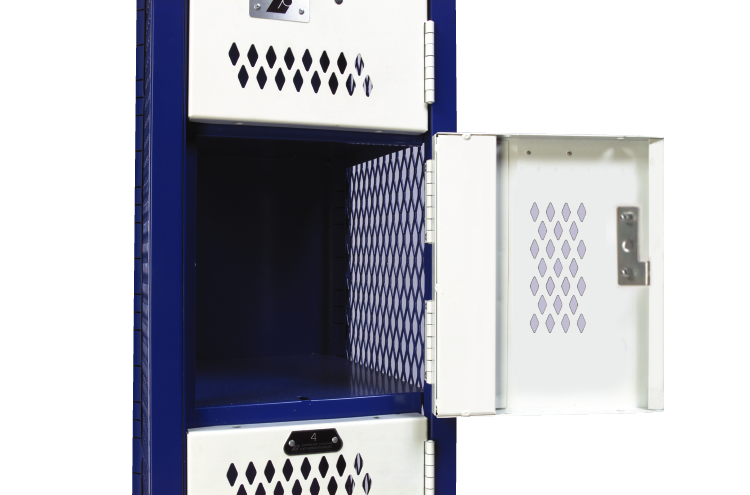

        Upgrade to Premier Series P.E. lockers which include a 3" wide 18 gauge full height door stiffener and are side hinged.

Upgrade to Premier Series:

P.E. lockers which include a 3" wide 18 gauge full height door stiffener and are side hinged.

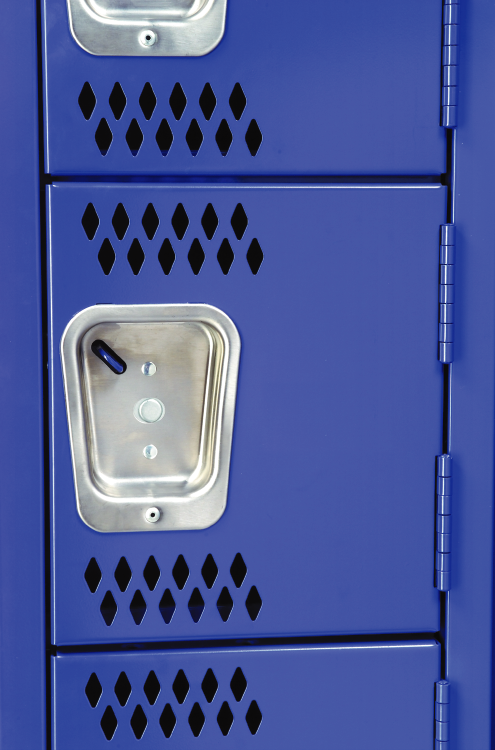

Optional Recessed Handle

Optional:

Seemless stainless steel recessed handle is available. Doors will be side hinged and will use our Marquis style single-point thru-the-handle latching.

P.E. Series Fully Framed All-Welded Lockers

P.E. Series -
Fully-Framed All-Welded Lockers

Superior® P.E. lockers are the solution when space is at a premium.



Heavy gauge fully-framed all-welded construction combined with modern features and the design flexibility of our Hollow-T framing system allows you to customize your locker room environment to be user friendly, maximize space and improve supervision, all without compromising the architectural esthetics of the room.

Features:

  • body construction: Fully-framed all-welded Hollow-T construction, 13 gauge 1/2" fully-framed
    flattened expanded metal sides, 16 gauge continuous top, 18 gauge solid back, 16 gauge galvanneal bottom
  • doors: 14 gauge diamond perforated doors are standard. Louvered, Security-Plus and plain door styles are available. Doors 12" high and under are standard with top hinge. Doors 15" and 18" high are standard with side hinge.
  • handle/latching: Top hinge doors have a projecting spring loaded heavy-duty latch/handle with
    integral padlock lug. Side hinge doors have a single-point thru-the-door projecting finger pull handle with padlock hasp. Optional deep-drawn seamless stainless steel recessed handle is available for side hinged gym doors (10" high and higher) and will utilize our Marquis style thru-the-handle single-point no moving parts latching and include two 13 gauge 7-knuckle 3-1/2" hinges
  • hinges: Top hinge doors use a concealed 3/16" continuous rod. Side hinge doors use two heavy-duty 13 gauge 7-knuckle 3-1/2" hinges. Optional side hinged doors 8" and 9" high will have special hinges
  • hooks: None
  • shelves: 16 gauge galvanneal intermediate shelves
  • warranty: Lifetime
  • sizes: visit Space Management page for size information

  •

    GREENGUARD Certificates:

    Indoor Air Quality Certificate



Photos:

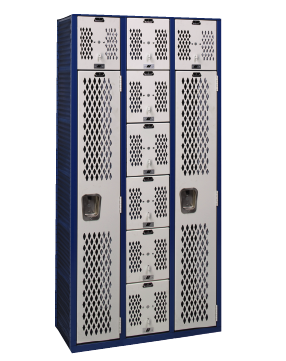

P.E. Lockers - A6A

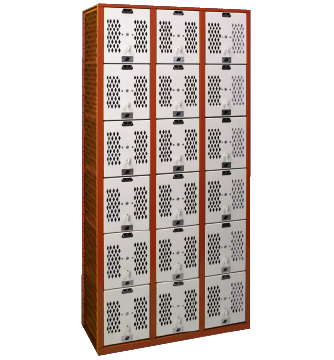

P.E. Lockers - 6 tier, 3 wide

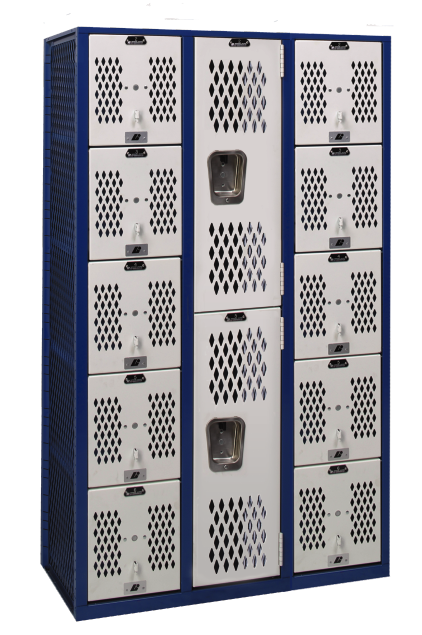

P.E. Lockers - 525

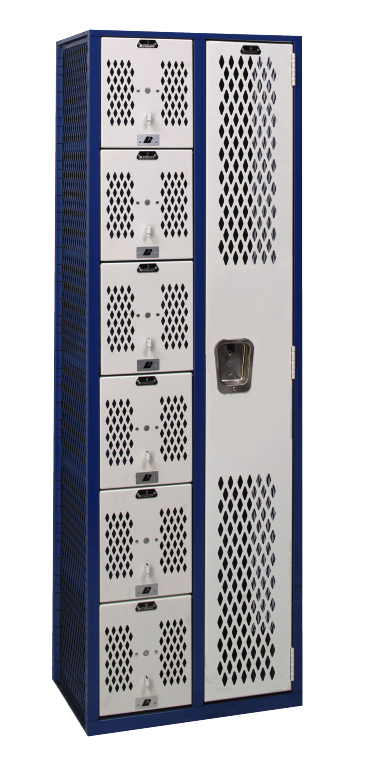

P.E. Lockers - 61

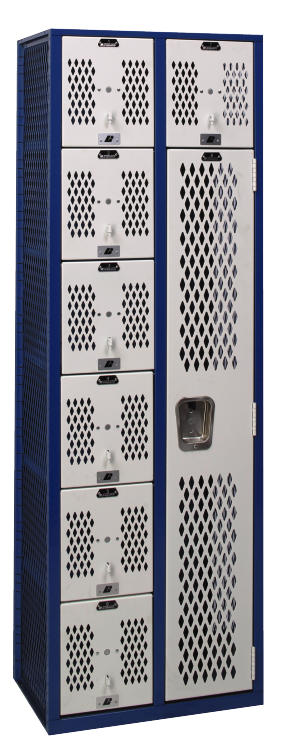

P.E. Lockers - 6A

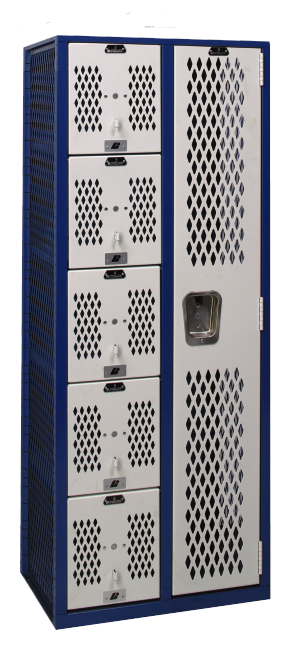

P.E. Lockers - 51
