Superior Lockers
  America's Most Complete Locker Line
Lockers - Superior - Security Max All-Welded High Security Lockers
Greenguard Gold Certified - Children & Schools
IN STOCK
Body Construction type is Fully-Framed All-Welded
Full Length Piano Hinge
Lifetime Warranty
Security Max Info

More Info:

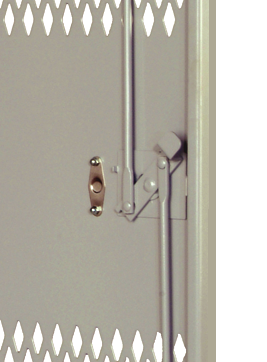

3 point high security turn handle latching

Standard:

3 point high security turn handle latching

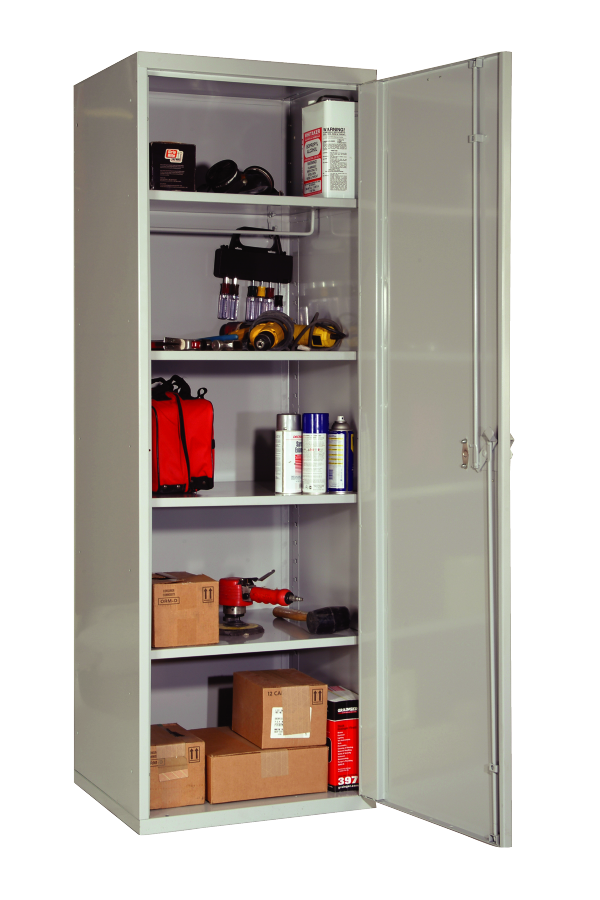

Security Max High Security All-Welded locker - gear storage
Security Max High Security All-Welded locker - gear storage

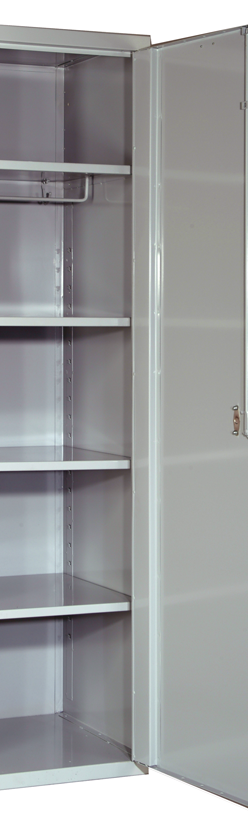

3" wide 18 gauge full height door stiffener

Standard:

3" wide 18 gauge full height door stiffener spot welded to the inner door face and MIG welded to the hinge side as well as to the top and bottom door flanges













Superior Security Max All-Welded High Security Lockers







Superior® - SecurityMax™ All-Welded High Security Lockers

Superior® SecurityMax™ heavy-duty all-welded lockers offer the highest available security by incorporating an extra heavy-duty three point turn-handle locking mechanism and the versatility of adjustable interior shelves. Available in ventilated and solid locker versions. SecurityMax lockers are ideal where heavy-duty and versatile storage is needed for tools, gear, sports equipment, uniforms and clothing.

Features:

  • BODY CONSTRUCTION: All-welded construction, 16 gauge heavy-duty body and 18 gauge back, Sides formed to be integral with front vertical frame and are reinforced using two front-to-back channel stiffeners welded to the underside.
  • BODY STYLES: One tier, one wide. Available in solid or ventilated versions
  • HINGES: Continuous piano type
  • HANDLE: Cremone 3-point high-security turn handle latching with heavy-duty 3/8" lock rods which engage the top and bottom locker frames while the cam engages the frame at the door jamb near the handle
  • DOOR: 14 gauge door with a full height welded in door stiffener
  • SHELVES: Upper welded hat shelf. Additional shelves can be ordered and are adjustable on 3" centers.
  • COAT ROD: 3/8" diameter rod is welded to underside of upper shelf hooks: Two single back hooks



Photos:

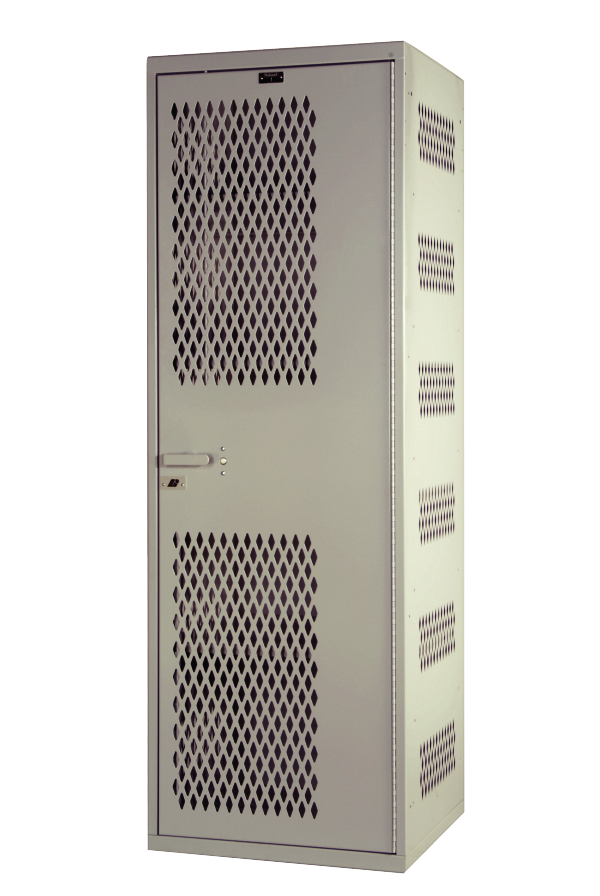

Security Max - Ventilated All-Welded Locker - door closed
Ventilated

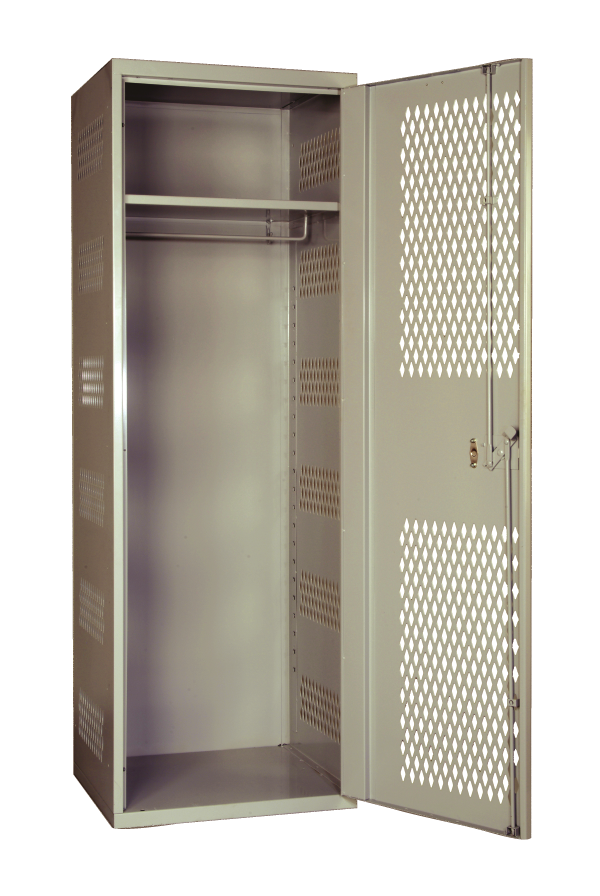

Security Max - Ventilated All-Welded Locker - door open
Ventilated

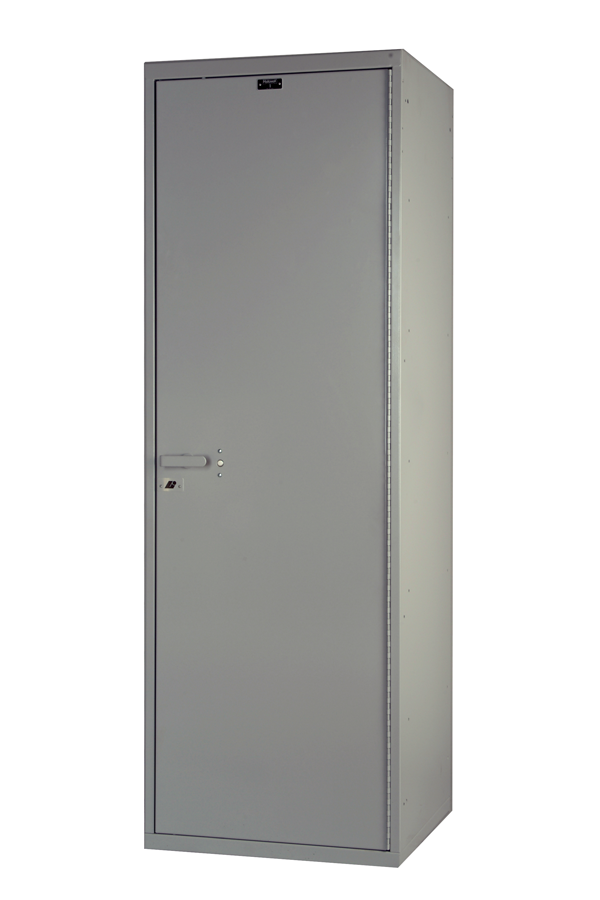

Security Max - Solid All-Welded Locker - door closed
Solid

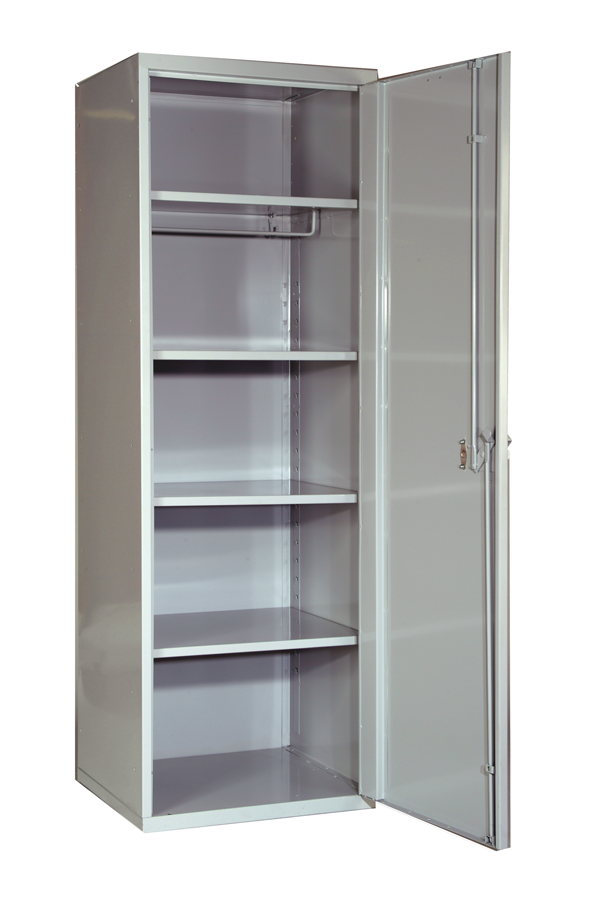

Security Max - solid All-Welded Locker - door open
Solid









Stock Size Chart:

Width Depth Opening Height Frame Height Tier Grouping Openings Per Group Fully-Assembled Cat # Color Selection
Ventilated Models
18 22 72 72 1 1-wide 1 HTA822-1AS PL
24 2272721 1-wide 1 HTA422-1AS PL
Solid Models
18 22 7272 11-wide 1 HTC822-1AS PL
24 22 7272 1 1-wide 1 HTC422-1AS PL
Additional Shelves
1822 UAS1822PL
2422 UAS2422PL

Colors:

Platinum
[PL]
