More Info:

Standard:

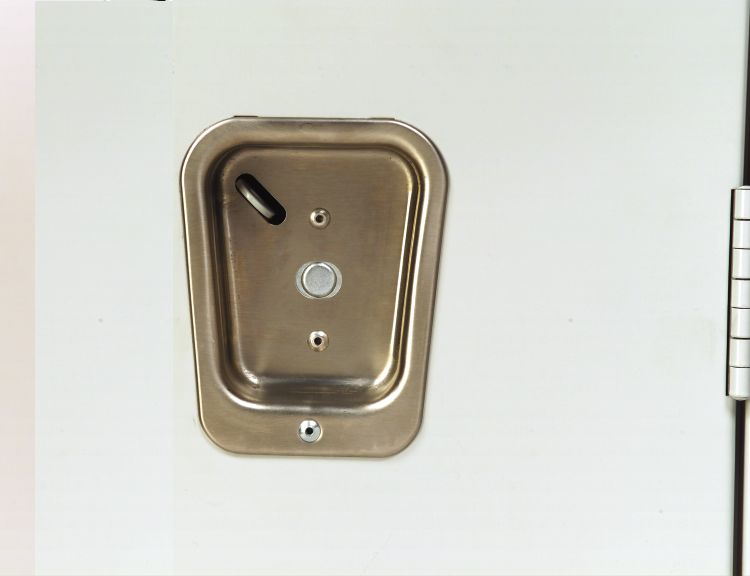

Deep-drawn stainless steel handle with gravity lift-type latching

Standard:

12 gauge latch hook is welded to frame

Standard:

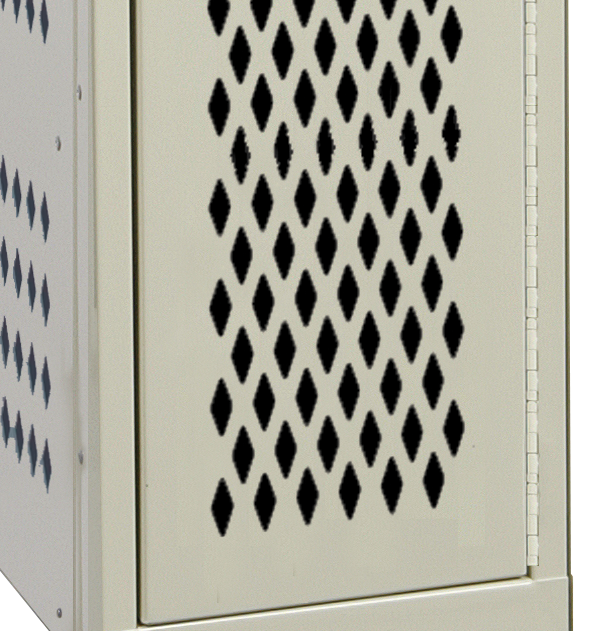

continuous piano hinge

UPGRADE TO PREMIER SERIES:

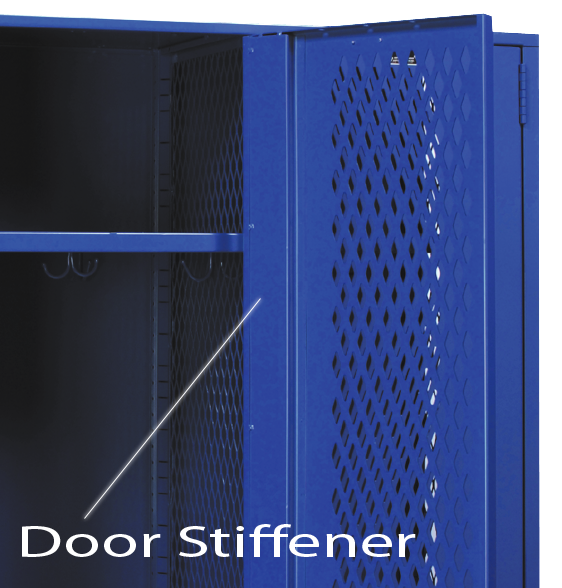

includes a 3" wide 18 gauge full height door stiffener. A 1-1/2"wide stiffener will be furnished with 9" wide Premier doors and 12" wide Premier box locker doors.

UPGRADE TO MARQUIS SERIES:

which include our deep-drawn seamless stainless steel recessed handle with single-point latching, and a 3" wide 18 gauge full height door stiffener spot welded to the inner door face and MIG welded to the hinge side as well as to the top and bottom door flanges providing a rigid torque-free door. A 1-1/2" wide stiffener will be furnished for 9" wide Marquis Series doors.

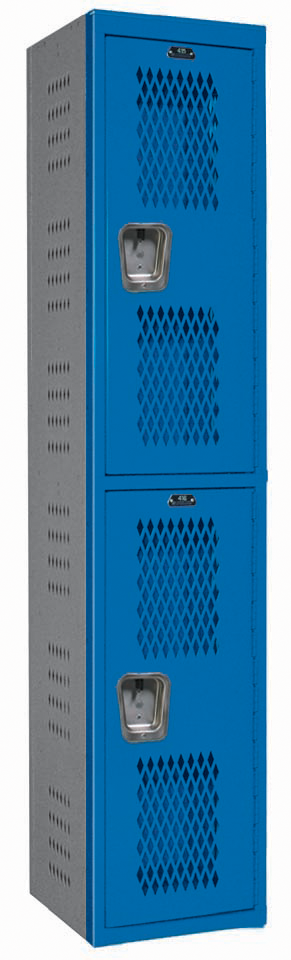

Heavy-Duty Ventilated (HDV) KD Wardrobe Lockers

Affordability and Functionality in One Locker

Heavy-Duty Ventilated KD lockers, commonly known as HDV lockers, are the perfect solution when budget restrictions prevent the use of fully-framed all-welded lockers.

HDV lockers are sold in various colors and multiple tier wardrobe & box options.

Features (Wardrobe & Box lockers):

body construction: Knock down (KD) with 16 gauge solid top, bottom and intermediate shelves, 16 gauge diamond perforated sides, 18 gauge solid back
doors: 14 gauge diamond perforated doors are standard. Louvered, Security-Plus and plain door styles are available
frame: 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers
hinges: 16 gauge continuous piano type
door strike: Continuous vertical door strike at both hinge and latch side
notes: All production KD lockers are supplied without legs unless otherwise specified
warranty: 2 years

Wardrobe Lockers (doors 20" and higher):

handle: Deep-drawn seamless stainless steel recessed handle
latching: Gravity lift-type multi-point spring loaded latching:

3-point latching for openings 48" high and higher
2 point latching for openings 20" high thru 36" high

hooks: 2-single hooks and 1-double hook is standard.

1- double hook only for triple tier
1 - single hook for 9" wide openings 30" and higher

shelves: 16 gauge hat shelf for single tier openings 60" and 72" high

Box Lockers (doors 18" and lower):

handle: Single-point thru-the-door finger pull padlock hasp
hooks: None

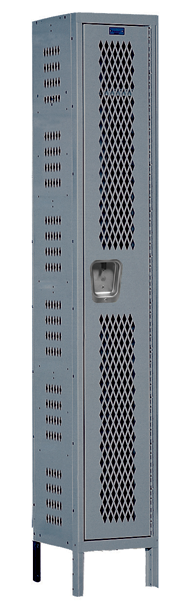

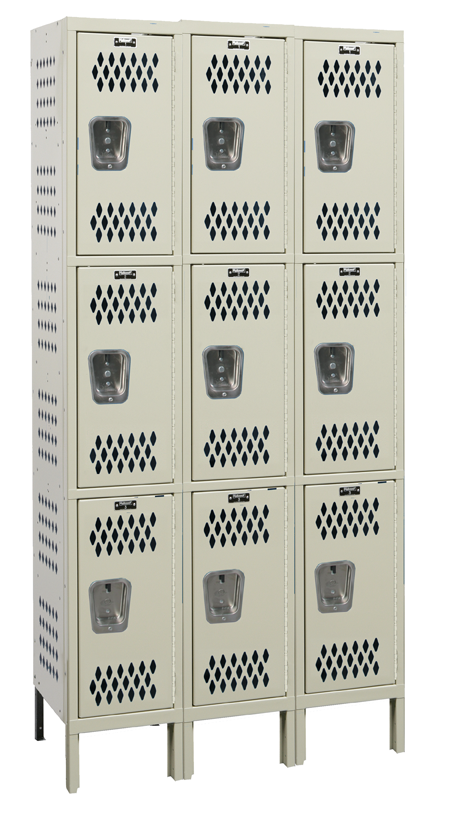

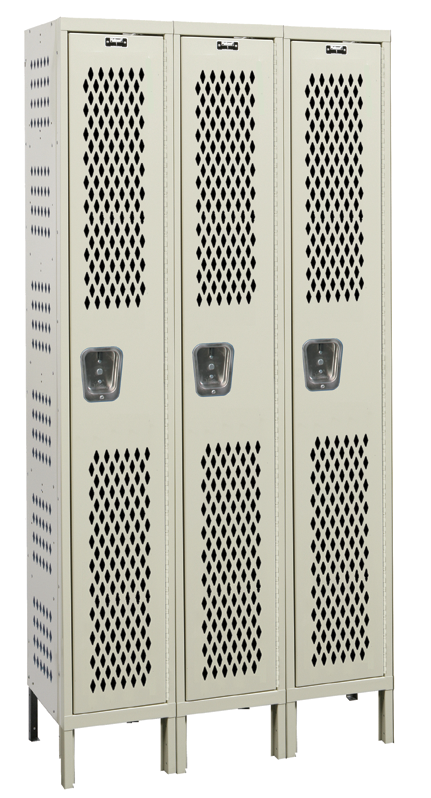

Wardrobe Locker Sizes:

Tier	Width	Depth	Opening Height	Frame Height
Single	9", 12", 15", 18", 24"	12", 15", 18", 21", 24"	36", 48", 60", 72"	36", 48", 60", 72"
Double	9", 12", 15", 18"	12", 15", 18", 21", 24"	30", 36"	60", 72"
Triple	9", 12", 15"	12", 15", 18", 21", 24"	20", 24"	60", 72"

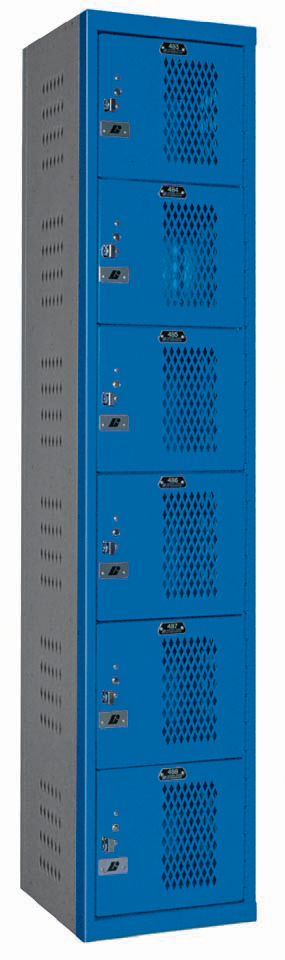

Box Locker Sizes:

Tier	Width	Depth	Opening Height	Frame Height
Four	12", 15"	12", 15", 18"	15", 18"	60", 72"
Five	12", 15"	12", 15", 18"	12", 12.4"	60", 72"
Six	12", 15"	12", 15", 18"	12"	72"
