More Info: |
 Standard:Single-Point Recessed Stainless Steel Handle |
Standard:Single-point maintenance-free quiet latching system |
Standard:3" wide 18 gauge full height door stiffener spot welded to the inner door face and MIG welded to the hinge side as well as to the top and bottom door flanges
|
Welded Single-Point Ventilated Lockers
Lockers include a 3" wide 18 gauge full height door stiffener spot welded to the inner door face and MIG welded to the hinge side as well as to the top and bottom door flanges providing a rigid torque-free door & Single-point maintenance-free quiet latching system with recessed handle
Features:
- BODY CONSTRUCTION: All-welded, fully-assembled
- BODY STYLES: Single and double tier
- CUSTOM FEATURES: 16 gauge continuos top for added rigidity, 11 gauge MIG welded latch, continuous door strike at hinge and latch side
- DOOR: 14 gauge door is diamond perforated for added visibility and ventilation and includes a welded-in full height door stiffener
- HINGES: Continuous piano type
- HANDLE: Deep-drawn seamless stainless steel recessed handle with single-point thru-the-handle maintenance-free quiet latching system
- SHELVES: Hat shelf for single tier
- Single-Point Specifications
GREENGUARD Certificates:
Photos:
Stock Size Chart:
| Width | Depth | Opening Height | Frame Height | Tier | Grouping | Openings Per Group | Fully-Assembled Cat # | Color Selection |
| Single Tier | ||||||||

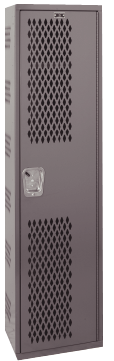

| 12 | 12 | 72 | 72 | 1 | 1-wide | 1 | HWBA212-1 | HG |

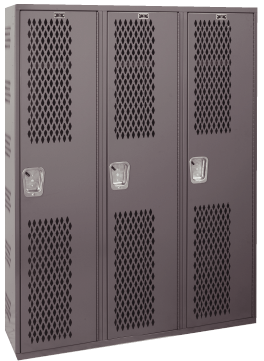

| 12 | 12 | 72 | 72 | 1 | 3-wide | 3 | HWBA212-111 | HG |
| 12 | 18 | 72 | 72 | 1 | 1-wide | 1 | HWBA282-1 | HG |
| 12 | 18 | 72 | 72 | 1 | 3-wide | 3 | HWBA282-111 | HG |
| 18 | 18 | 72 | 72 | 1 | 1-wide | 1 | HWBA882-1 | HG |
| 18 | 18 | 72 | 72 | 1 | 3-wide | 3 | HWBA882-111 | HG |
| Double Tier | ||||||||
| 12 | 12 | 36 | 72 | 2 | 1-wide | 2 | HWBA212-2 | HG |

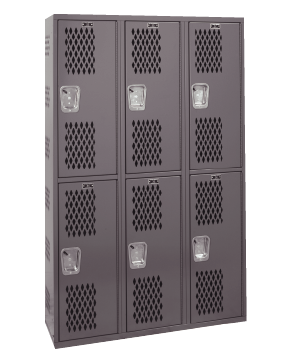

| 12 | 12 | 36 | 72 | 2 | 3-wide | 6 | HWBA212-222 | HG |
| 12 | 18 | 36 | 72 | 2 | 1-wide | 2 | HWBA282-2 | HG |
| 12 | 18 | 36 | 72 | 2 | 3-wide | 6 | HWBA282-222 | HG |
| 18 | 18 | 36 | 72 | 2 | 1-wide | 2 | HWBA882-2 | HG |
| 18 | 18 | 36 | 72 | 2 | 3-wide | 6 | HWBA882-222 | HG |
