More Info: |
 Click to see part numbers, size and color information for IN-STOCK lockers |
 Standard:Deep-drawn stainless steel handle with gravity lift-type latching |
Standard:12 gauge latch hook is welded to frame |
Standard:continuous piano hinge
|
Classic KD Wardrobe Lockers -
In Stock
Doors 20" high and higher
Practical, Versatile, & Popular
Stock Wardrobe Lockers:
- Lockers can be ordered fully-assembled or knock-down for assembly at destination.
- Order 3-wide units for best value. Order 1-wide units to complete quantity needed for each continuous row.
- Lockers can be ordered in combination with Classic KD Box lockers.
- All items shown are available for shipment within 5 business days of receipt of order.
- Aluminum number plates (#1-up) with mounting hardware are included. Number plate face is black with silver etched numerals. If a special numbering sequence is required, please specify when ordering. Number sequence must be consecutive numbers equal to the number of openings (doors) ordered.
- Locks are not included.
Features:
- BODY CONSTRUCTION: Knock-down, 24 gauge
- BODY STYLES: Single, double and triple tier
- DOOR: 16 gauge, louvered for added ventilation
- HINGES: Continuous piano type
- HANDLE: Stainless steel recessed handle with multi-point gravity lift-type latching for a modern look and added safety. Recessed handle protects finish from being marred by padlock.
- HOOKS: One double prong ceiling hook and two single hooks per single and double tier opening. One double ceiling hook per triple tier opening.
- COAT RODS: Available for single tier at a nominal cost
- SHELVES: Hat shelf is included in single tier lockers.
- LEGS: 6" high legs are standard. Lockers without legs at a nominal charge

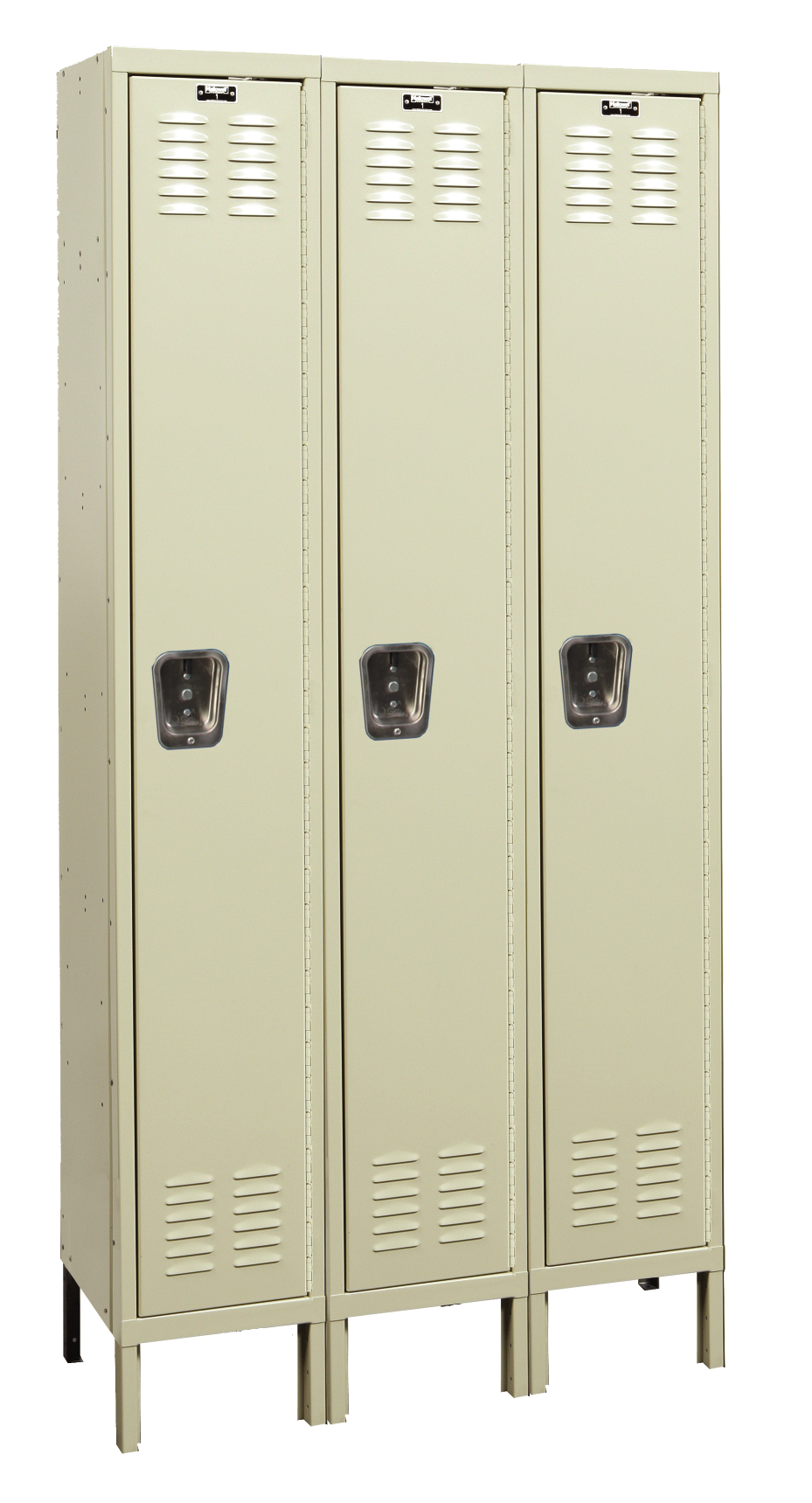

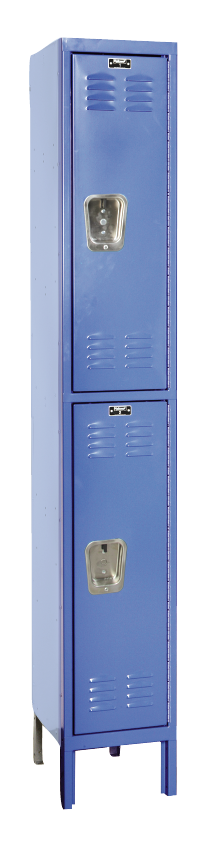

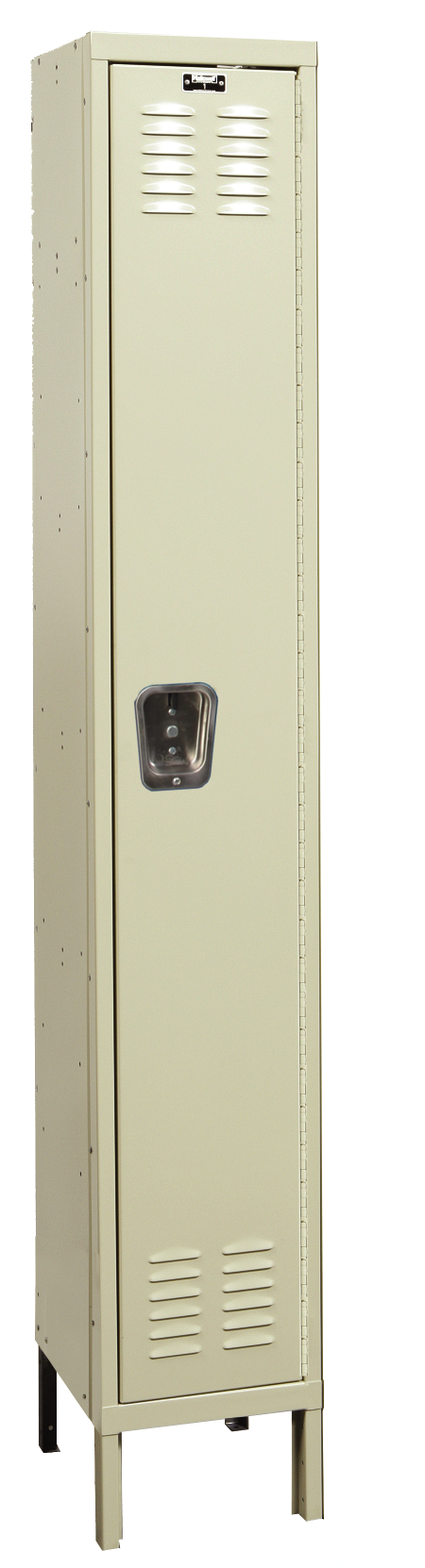

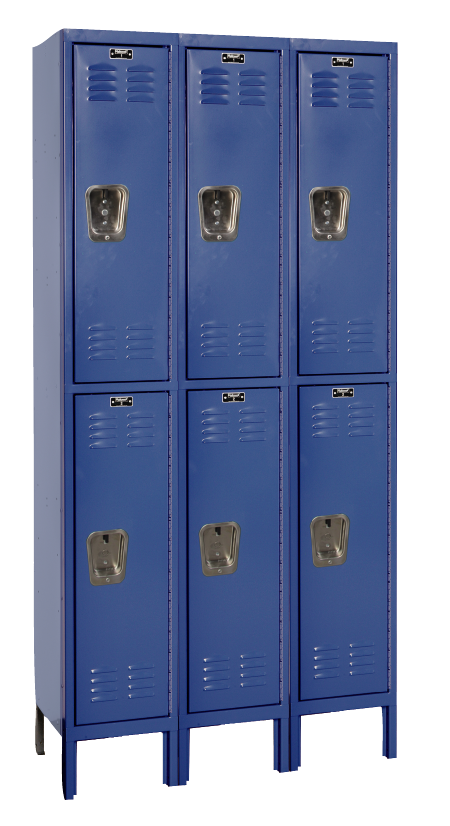

Photos:
Classic KD Wardrobe Catalog:
| Width | Depth | Opening Height | Frame Height | Tier | Grouping | Openings per Group | KD Cat # | Fully-Assembled Cat # | Color Selection |
| 12 | 12 | 60 | 66 | 1 | 1-wide | 1 | U1226-1 | U1226-1A | PT, HG |
| 12 | 12 | 60 | 66 | 1 | 3-wide | 3 | U3226-1 | U3226-1A | PT, HG |
| 12 | 15 | 60 | 66 | 1 | 1-wide | 1 | U1256-1 | U1256-1A | PT, HG |
| 12 | 15 | 60 | 66 | 1 | 3-wide | 3 | U3256-1 | U3256-1A | PT, HG |
| 12 | 18 | 60 | 66 | 1 | 1-wide | 1 | U1286-1 | U1286-1A | PT, HG |
| 12 | 18 | 60 | 66 | 1 | 3-wide | 3 | U3286-1 | U3286-1A | PT, HG |
| 12 | 12 | 72 | 78 | 1 | 1-wide | 1 | U1228-1 | U1228-1A | PT, HG, MB, PL, ME |
| 12 | 12 | 72 | 78 | 1 | 3-wide | 3 | U3228-1 | U3228-1A | PT, HG, MB, PL, ME |
| 12 | 15 | 72 | 78 | 1 | 1-wide | 1 | U1258-1 | U1258-1A | PT, HG, MB, PL, ME |
| 12 | 15 | 72 | 78 | 1 | 3-wide | 3 | U3258-1 | U3258-1A | PT, HG, MB, PL, ME |
| 12 | 18 | 72 | 78 | 1 | 1-wide | 1 | U1288-1 | U1288-1A | PT, HG, MB, PL, ME |
| 12 | 18 | 72 | 78 | 1 | 3-wide | 3 | U3288-1 | U3288-1A | PT, HG, MB, PL, ME |
| 15 | 15 | 72 | 78 | 1 | 1-wide | 1 | U1558-1 | U1558-1A | PT, HG |
| 15 | 15 | 72 | 78 | 1 | 3-wide | 3 | U3558-1 | U3558-1A | PT, HG |
| 15 | 18 | 72 | 78 | 1 | 1-wide | 1 | U1588-1 | U1588-1A | PT, HG |
| 15 | 18 | 72 | 78 | 1 | 3-wide | 3 | U3588-1 | U3588-1A | PT, HG |
| 15 | 21 | 72 | 78 | 1 | 1-wide | 1 | U1518-1 | U1518-1A | PT |
| 15 | 21 | 72 | 78 | 1 | 3-wide | 3 | U3518-1 | U3518-1A | PT |
| 15 | 24 | 72 | 78 | 1 | 1-wide | 1 | U1548-1 | U1548-1A | PT |
| 15 | 24 | 72 | 78 | 1 | 3-wide | 3 | U3548-1 | U3548-1A | PT |
| 18 | 18 | 72 | 78 | 1 | 1-wide | 1 | U1888-1 | U1888-1A | PT, HG |
| 18 | 18 | 72 | 78 | 1 | 3-wide | 3 | U3888-1 | U3888-1A | PT, HG |
| 18 | 21 | 72 | 78 | 1 | 1-wide | 1 | U1818-1 | U1818-1A | PT, HG |
| 18 | 21 | 72 | 78 | 1 | 3-wide | 3 | U3818-1 | U3818-1A | PT, HG |
| 18 | 24 | 72 | 78 | 1 | 1-wide | 1 | U1848-1 | U1848-1A | PT |
| 18 | 24 | 72 | 78 | 1 | 3-wide | 3 | U3848-1 | U3848-1A | PT |
| 12 | 12 | 30 | 66 | 2 | 1-wide | 2 | U1226-2 | U1226-2A | PT, HG |
| 12 | 12 | 30 | 66 | 2 | 3-wide | 6 | U3226-2 | U3226-2A | PT, HG |
| 12 | 15 | 30 | 66 | 2 | 1-wide | 2 | U1256-2 | U1256-2A | PT, HG |
| 12 | 15 | 30 | 66 | 2 | 3-wide | 6 | U3256-2 | U3256-2A | PT, HG |
| 12 | 18 | 30 | 66 | 2 | 1-wide | 2 | U1286-2 | U1286-2A | PT, HG |
| 12 | 18 | 30 | 66 | 2 | 3-wide | 6 | U3286-2 | U3286-2A | PT, HG |
| 12 | 12 | 36 | 78 | 2 | 1-wide | 2 | U1228-2 | U1228-2A | PT, HG, MB, PL, ME |
| 12 | 12 | 36 | 78 | 2 | 3-wide | 6 | U3228-2 | U3228-2A | PT, HG, MB, PL, ME |
| 12 | 15 | 36 | 78 | 2 | 1-wide | 2 | U1258-2 | U1258-2A | PT, HG, MB, PL, ME |
| 12 | 15 | 36 | 78 | 2 | 3-wide | 6 | U3258-2 | U3258-2A | PT, HG, MB, PL, ME |
| 12 | 18 | 36 | 78 | 2 | 1-wide | 2 | U1288-2 | U1288-2A | PT, HG, MB, PL, ME |
| 12 | 18 | 36 | 78 | 2 | 3-wide | 6 | U3288-2 | U3288-2A | PT, HG, MB, PL, ME |
| 15 | 15 | 36 | 78 | 2 | 1-wide | 2 | U1558-2 | U1558-2A | PT, HG |
| 15 | 15 | 36 | 78 | 2 | 3-wide | 6 | U3558-2 | U3558-2A | PT, HG |
| 15 | 18 | 36 | 78 | 2 | 1-wide | 2 | U1588-2 | U1588-2A | PT, HG |
| 15 | 18 | 36 | 78 | 2 | 3-wide | 6 | U3588-2 | U3588-2A | PT, HG |
| 15 | 21 | 36 | 78 | 2 | 1-wide | 2 | U1518-2 | U1518-2A | PT |
| 15 | 21 | 36 | 78 | 2 | 3-wide | 6 | U3518-2 | U3518-2A | PT |
| 15 | 24 | 36 | 78 | 2 | 1-wide | 2 | U1548-2 | U1548-2A | PT |
| 15 | 24 | 36 | 78 | 2 | 3-wide | 6 | U3548-2 | U3548-2A | PT |
| 12 | 12 | 24 | 78 | 3 | 1-wide | 3 | U1228-3 | U1228-3A | PT, HG, MB, PL, ME |
| 12 | 12 | 24 | 78 | 3 | 3-wide | 9 | U3228-3 | U3228-3A | PT, HG, MB, PL, ME |
| 12 | 15 | 24 | 78 | 3 | 1-wide | 3 | U1258-3 | U1258-3A | PT, HG, MB, PL, ME |
| 12 | 15 | 24 | 78 | 3 | 3-wide | 9 | U3258-3 | U3258-3A | PT, HG, MB, PL, ME |
| 12 | 18 | 24 | 78 | 3 | 1-wide | 3 | U1288-3 | U1288-3A | PT, HG, MB, PL, ME |
| 12 | 18 | 24 | 78 | 3 | 3-wide | 9 | U3288-3 | U3288-3A | PT, HG, MB, PL, ME |
Colors:
Tan
[PT]
Dark Gray
[HG]
Marine Blue
[MB]
Light Gray
[PL]
Black
[ME]
Appearance: All lockers include matching body colors. Order Finished End Panels for exposed row ends if desired. Finished End Panels install over top of universal side panels adding strength and rigidity at exposed row ends and can be ordered to match locker door/frame color.
