More Info: |
 See available sizes and options below
|

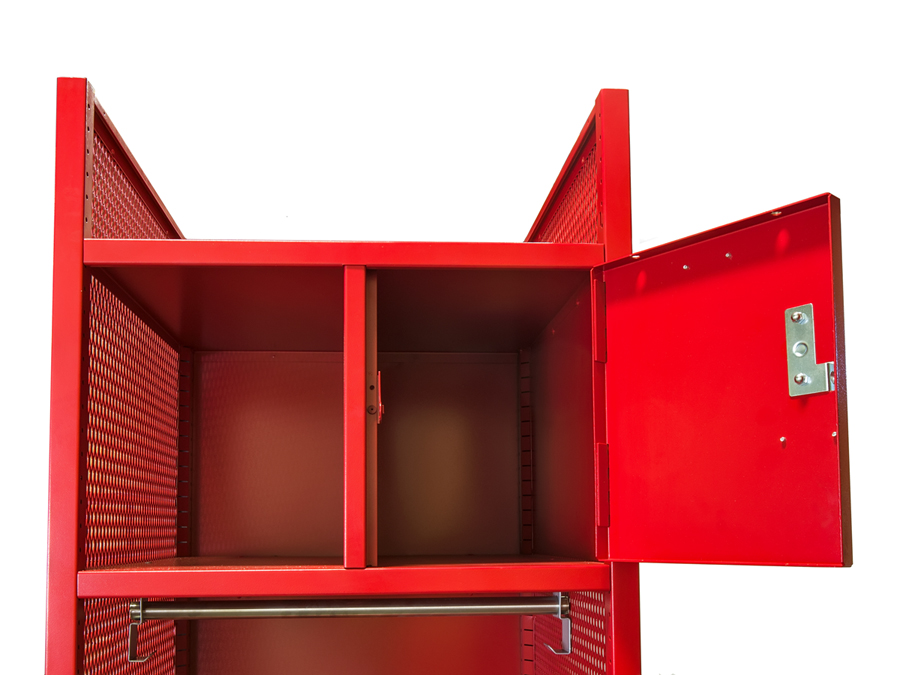

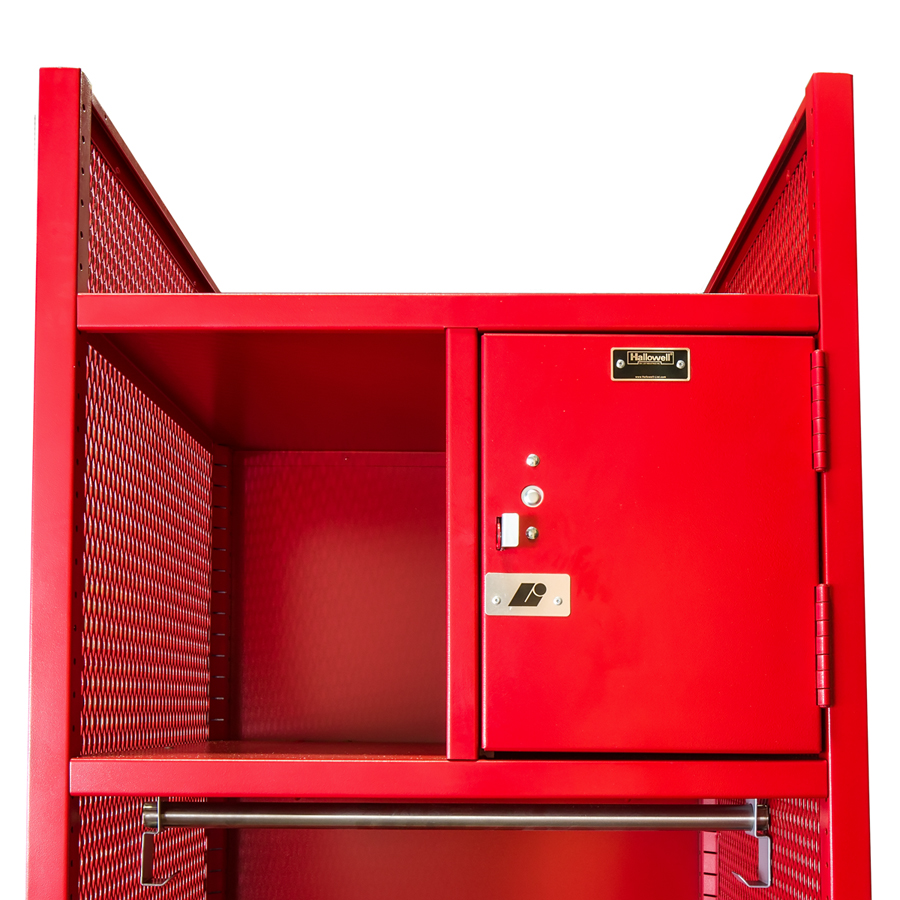

Optional Security Box uses Two heavy-duty 13 gauge 7-knuckle 3-1/2" hinges and a finger pull padlock hasp
|

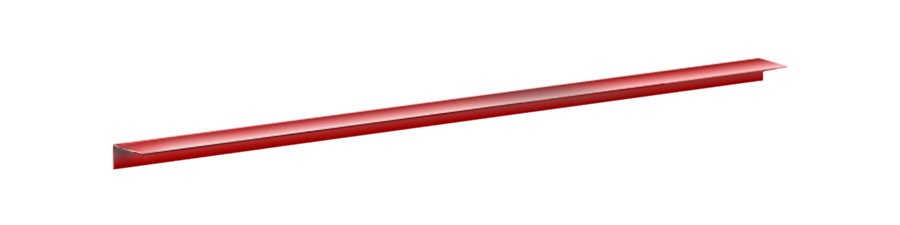

Wall mounting angle for models without base
|
Turnout Gear / Firefighter Lockers

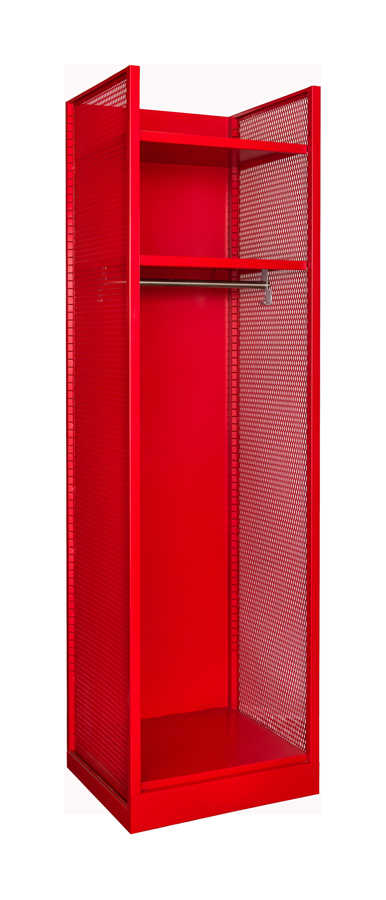

Fully-Framed All-Welded Turnout Gear Lockers
- Fully-framed, all-welded, rugged construction

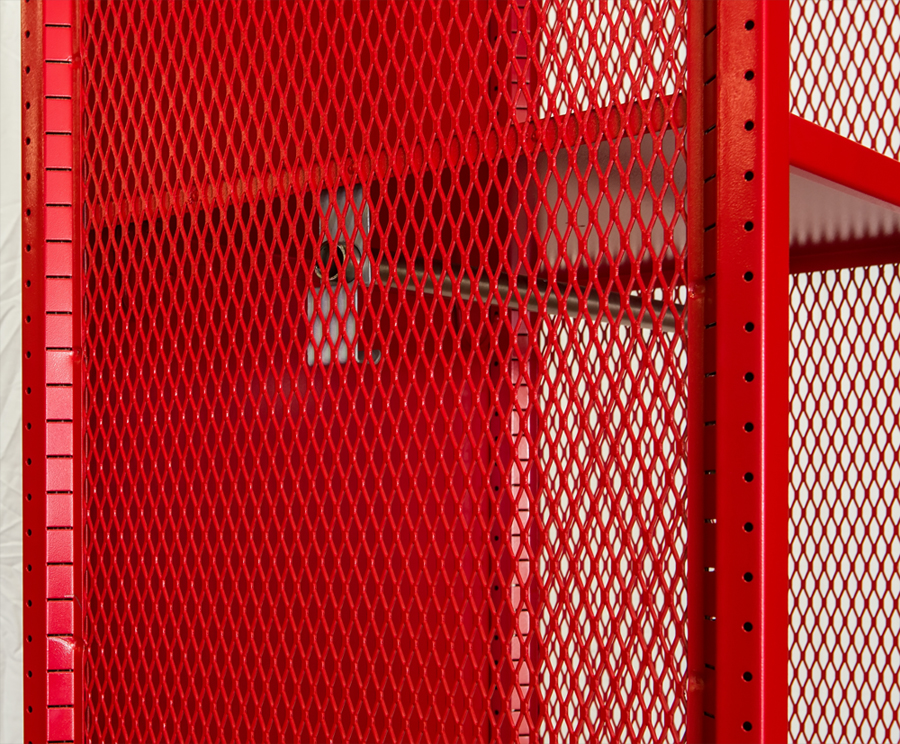

- Maximum ventilation with expanded metal sides.

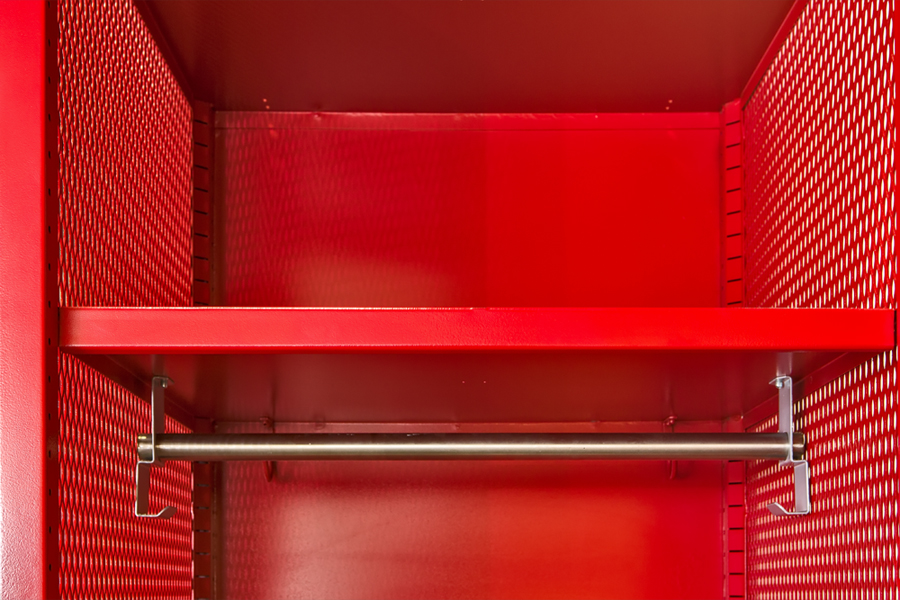

- Upper shelf provides simple storage for helmets and head gear.

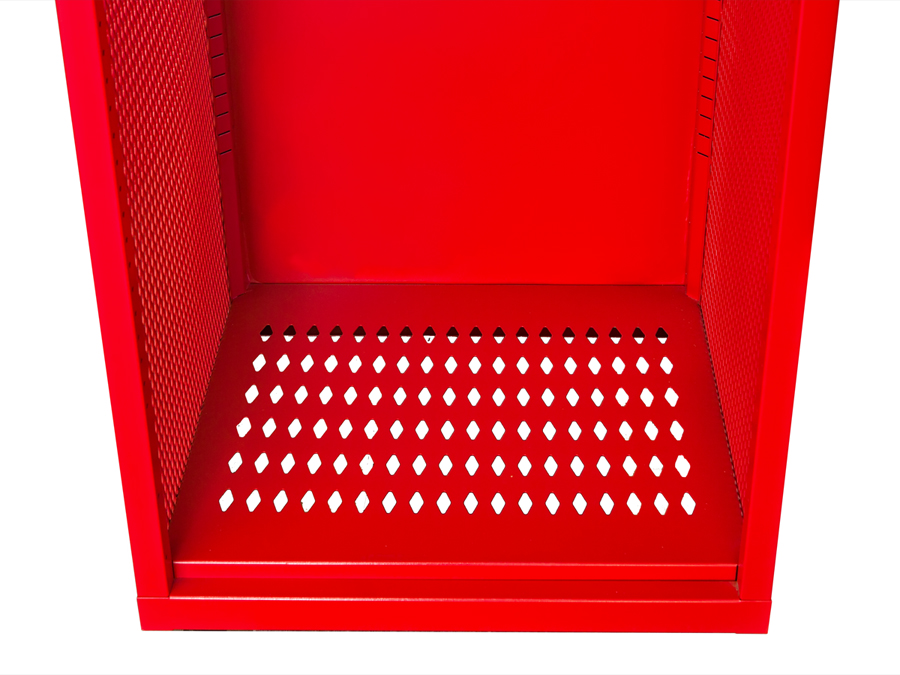

- Without base models include ventilated bottom.
- Open-front provides quick and easy access to gear and clothing.
- 721 Relay Red hammertone textured powder coat finish.
 |
|
|
|
| TGBN42(84)-1BC-G-RR-HT | TGBN42(84)-1C-G-RR-HT | TGNN42(84)-1BC-G-RR-HT | TGNN42(84)-1C-G-RR-HT |
Features:
- BODY CONSTRUCTION: 13 gauge ½” flattened expanded metal
- FRAME: 16 gauge Hollow "T" tubular frame
- BODY STYLE: Open front
- DOOR: 14 gauge cold rolled sheet-steel
- HINGES: Two heavy-duty 13 gauge 7-knuckle 3-1/2"
- HANDLE: Projecting combination spring-bolt/padlock hasp door pull
- EQUIPMENT: One galvanneal hat/intermediate shelf and two single prong hooks. 1 fixed hat shelf
Size Chart:
| Description | Width | Depth | Height | Weight | Assembled Cat # |
|---|---|---|---|---|---|
| Base Model | |||||

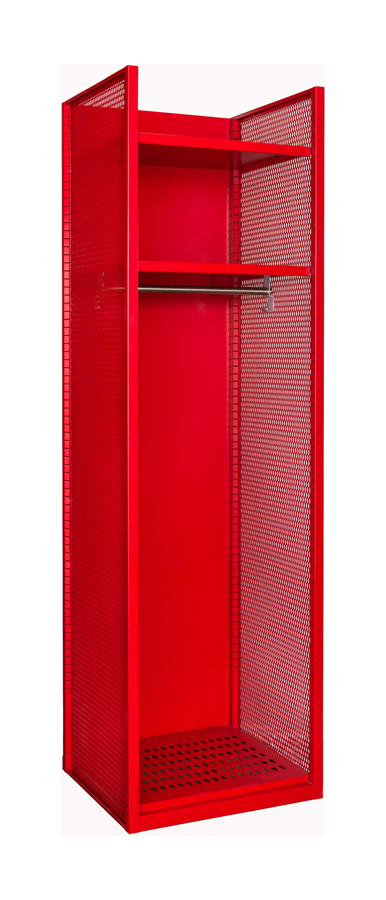

| Without Base | 24-3/4 | 22 | 84 | 163 | TGNN42(84)-1C-G-RR-HT |

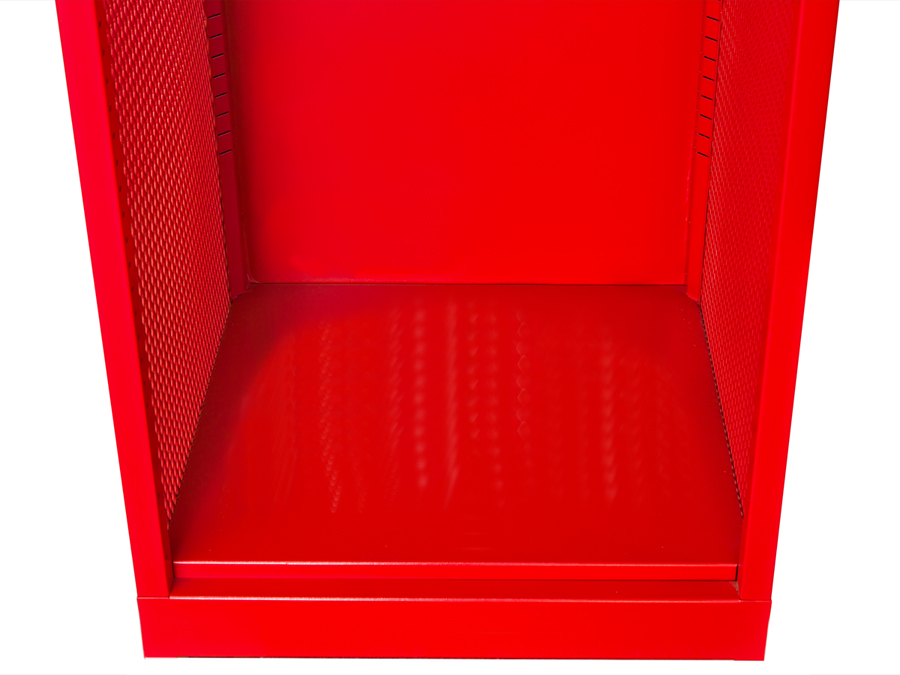

| With Base | 24-3/4 | 22 | 86-1/4 | 176 | TGNN42(84)-1BC-G-RR-HT |
| With Upper Security Box | |||||

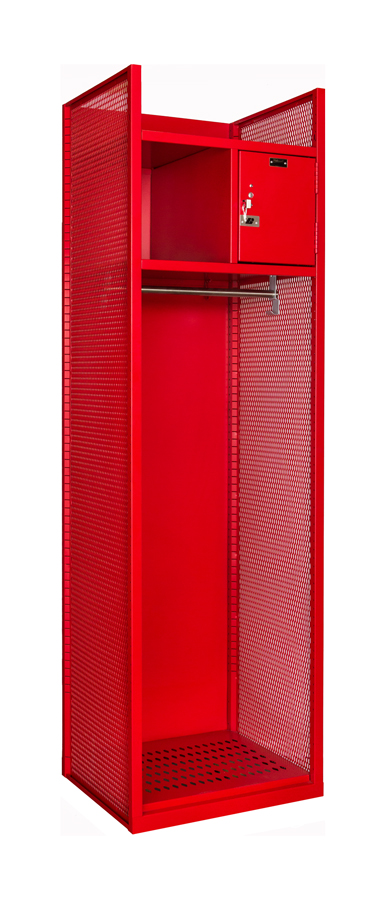

| Without Base | 24-3/4 | 22 | 84 | 173 | TGBN42(84)-1C-G-RR-HT |

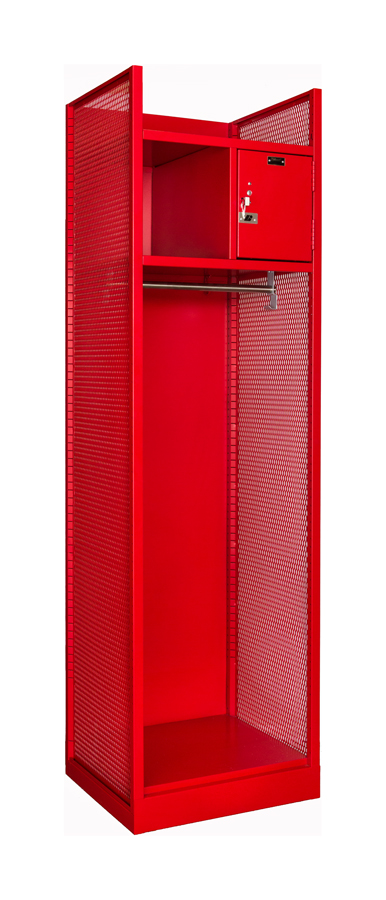

| With Base | 24-3/4 | 22 | 86-1/4 | 186 | TGBN42(84)-1BC-G-RR-HT |
| Wall mounting angle for models without base | |||||
| 72 | 3 | 3 | 23 | TGWMA030372 | |
Colors:
Relay Red
[RR]
Photos:
