More Info: |

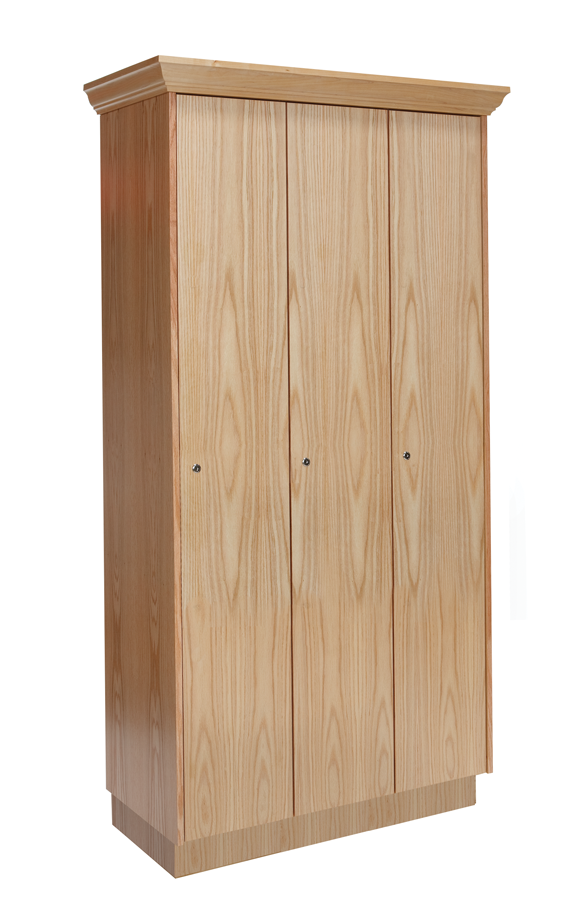

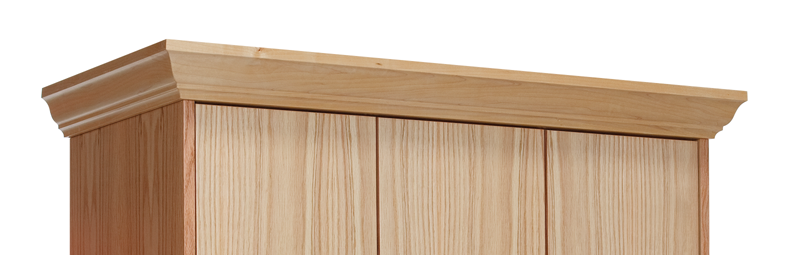

 Optional: Crown Molding at top of unit |

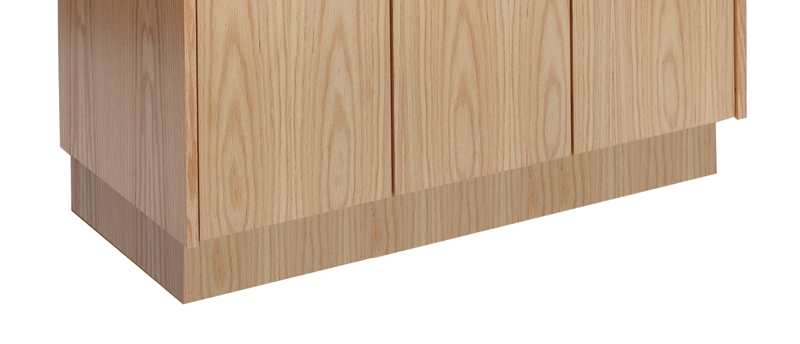

 Optional:raised base |

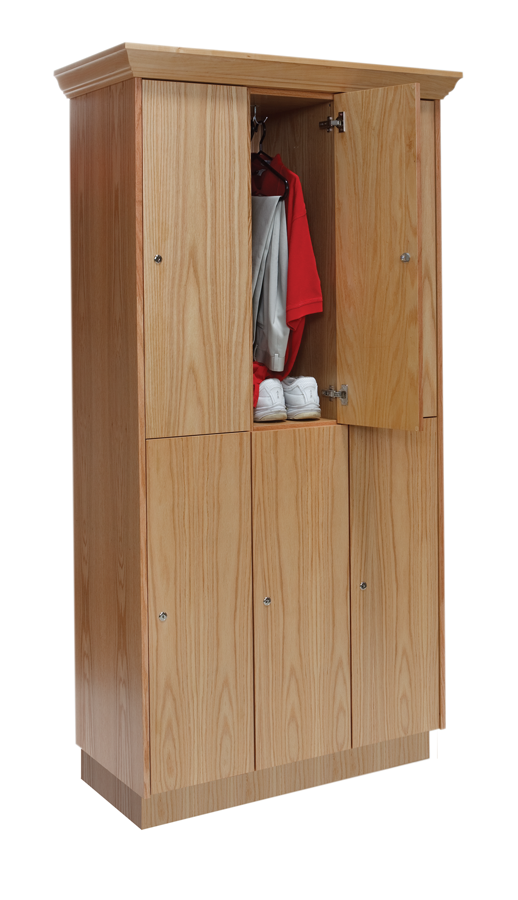

 Club lockers -showing open door. |

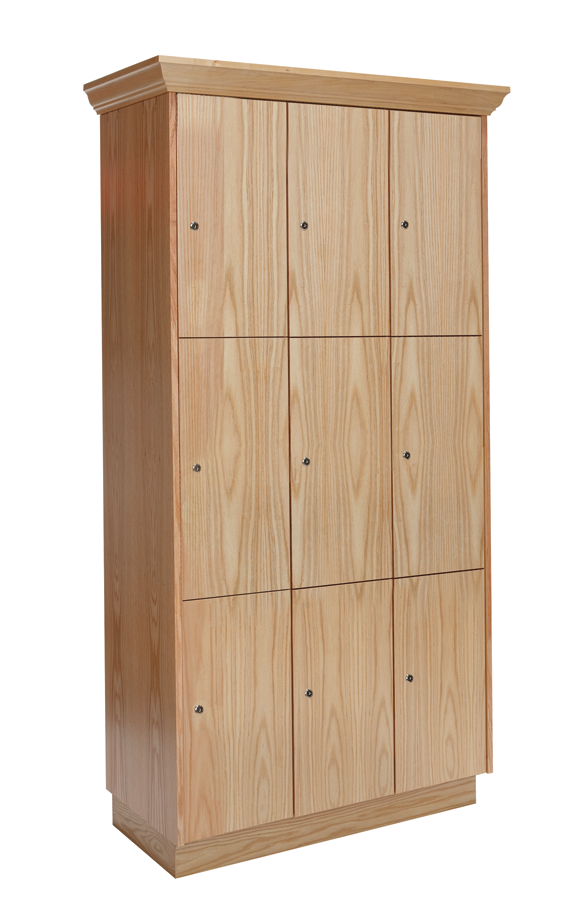

 Club Lockers -3x3 |
Photos:
|
|
|
Ideal for Country Clubs, Health Spas, and Fitness Centers
Furniture Grade Wardrobe Lockers
Features:
- BODY CONSTRUCTION: Wood lockers shall be fabricated from ¾" plain sliced red oak plywood throughout including sides, backs and hat shelves.
- BODY STYLES: Single, double and triple tier
- finish: All interior/front faces to be finished with a three coat catalyzed clear cabinet lacquer or equivalent.
- DOOR: Furniture grade red oak plywood, finished with 3 coats of lacquer
- HINGES: Concealed european-style cabinet hinges
- HOOKS: Two single hooks per single and double tier opening. One double prong ceiling hook for triple tier.
- COAT RODS: Standard for single and double tier
- SHELVES: Hat shelf is included in single tier lockers.
- LEGS: No legs
- APPEARANCE: Natural red oak
- NOTE: Other optional locking methods also available
| Width | Depth | Opening Height | Frame Height | Tier | Grouping | Openings Per Group | Fully Assembled Catalog # | Color Selection |
| Single Tier | ||||||||
| 12 | 18 | 72 | 72 | 1 | 1-wide | 1 | UW1282-1A-W | Red Oak |
| 12 | 18 | 72 | 72 | 1 | 3-wide | 3 | UW3282-1A-W | Red Oak |
| 15 | 18 | 72 | 72 | 1 | 1-wide | 1 | UW1582-1A-W | Red Oak |
| 15 | 18 | 72 | 72 | 1 | 3-wide | 3 | UW3582-1A-W | Red Oak |
| Double Tier | ||||||||
| 12 | 18 | 36 | 72 | 2 | 1-wide | 2 | UW1282-2A-W | Red Oak |
| 12 | 18 | 36 | 72 | 2 | 3-wide | 6 | UW3282-2A-W | Red Oak |
| 15 | 18 | 36 | 72 | 2 | 1-wide | 2 | UW1582-2A-W | Red Oak |
| 15 | 18 | 36 | 72 | 2 | 3-wide | 6 | UW3582-2A-W | Red Oak |
| Triple Tier | ||||||||
| 12 | 18 | 24 | 72 | 3 | 1-wide | 3 | UW1282-3A-W | Red Oak |
| 12 | 18 | 24 | 72 | 3 | 3-wide | 9 | UW3282-3A-W | Red Oak |
| 15 | 18 | 24 | 72 | 3 | 1-wide | 3 | UW1582-3A-W | Red Oak |
| 15 | 18 | 24 | 72 | 3 | 3-wide | 9 | UW3588-3A-W | Red Oak |
Accessories:
| Width | Depth | Height | Catalog # | Color Selector |
| Base | ||||
| 12 | 18 | 4 | WCB128W | Red Oak |
| 36 | 18 | 4 | WCB328W | Red Oak |
| 15 | 18 | 4 | WCB158W | Red Oak |
| 45 | 18 | 4 | WCB358W | Red Oak |
| Finished End Base | ||||
| 18 | 4 | WCEB18W | Red Oak | |
| Finished End Panel (required at exposed ends) | ||||
| 3/4 | 18 | 72 | WEP1872W | Red Oak |
| Front Crown Molding | ||||
| 12 | 4 | WCM12W | Red Oak | |
| 15 | 4 | WCM15W | Red Oak | |
| 36 | 4 | WCM36W | Red Oak | |
| 45 | 4 | WCM45W | Red Oak | |
| End Crown Molding | ||||
| 18 | 4 | WCME18W | Red Oak | |
