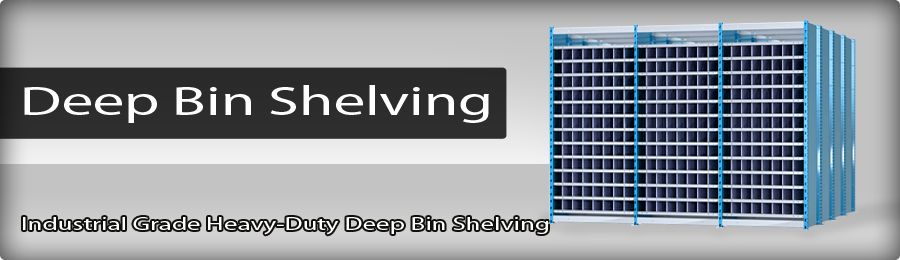

Heavy Duty Deep Bin Shelving
Description:
- H-Post
- Heavy-Duty Hi-Tech Box Formed Shelves
- Verticle dividers bolt in for added strength and durability
- 3/4" Plywood back painted Marine Blue [MB] to absorb contact
- Horizontal stabilation beams eliminate sway
- 18 gauge side panels
- All Units 36" wide by 87" high
 |
 |
 |
 |
18 Bin Unit | 28 Bin Unit | 50 Bin Unit | 96 Bin Unit |
Stock Sizes:
| Total # of Bins | # Bins Wide | # Bins High | Bin Dimensions | Starter | Adder | ||
|---|---|---|---|---|---|---|---|
| W | D | H | Catalog # | Catalog # | |||
| 18 | 3 | 6 | 12 | 48 | 10-1/2 | HDB18-48 | AHDB18-48 |
| 18 | 3 | 6 | 12 | 72 | 10-1/2 | HDB18-72 | AHDB18-72 |
| 18 | 3 | 6 | 12 | 96 | 10-1/2 | HDB18-96 | AHDB18-96 |
| 28 | 4 | 7 | 9 | 48 | 9 | HDB28-48 | AHDB28-48 |
| 28 | 4 | 7 | 9 | 72 | 9 | HDB28-72 | AHDB28-72 |
| 28 | 4 | 7 | 9 | 96 | 9 | HDB28-96 | AHDB28-96 |
| 50 | 5 | 10 | 6 | 48 | 6 | HDB50-48 | AHDB50-48 |
| 50 | 5 | 10 | 6 | 72 | 6 | HDB50-72 | AHDB50-72 |
| 50 | 5 | 10 | 6 | 96 | 6 | HDB50-96 | AHDB50-96 |
| 96 | 8 | 12 | 4 | 48 | 4-1/2 | HDB96-48 | AHDB96-48 |
| 96 | 8 | 12 | 4 | 72 | 4-1/2 | HDB96-72 | AHDB96-72 |
| 96 | 8 | 12 | 4 | 96 | 4-1/2 | HDB96-96 | AHDB96-96 |
