Heavy-Duty Ventilated (HDV) KD STOCK Lockers
- Ventilated doors and sides
- Heavy gauge door and body
- Large capacity sizes available
- Strength and ventilation in one practical locker
Features (Wardrobe & Box lockers):
- body construction : Knock down (KD) with 16 gauge solid top, bottom and intermediate shelves, 16 gauge diamond perforated sides, 18 gauge solid back
- body styles: Single, double and six tier
- doors: 14 gauge diamond perforated doors are standard. Louvered, Security-Plus and plain door styles are available
- frame: 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers

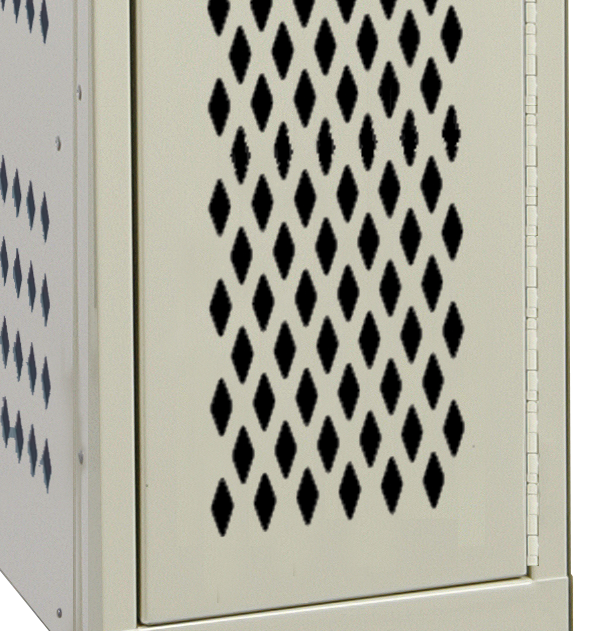

- hinges: 16 gauge continuous piano type
- door strike: Continuous vertical door strike at both hinge and latch side
- legs: 6" high legs are standard. Lockers without legs are available for a nominal charge
- warranty: 2 years
Wardrobe Lockers (doors 20" and higher):
- coat rods: Available for single tier at a nominal cost
- handle: Deep-drawn seamless stainless steel recessed handle
- latching: Gravity lift-type multi-point spring loaded latching:
- 3-point latching for openings 48" high and higher
- 2 point latching for openings 20" high thru 36" high
- hooks: 2-single hooks and 1-double hook is standard.
- 1- double hook only for triple tier
- 1 - single hook for 9" wide openings 30" and higher
- shelves: 16 gauge hat shelf for single tier openings 60" and 72" high
Box Lockers (doors 18" and lower):
- handle:Box lockers include a projecting single-point friction catch door pull prepared for both padlock or built-in lock. No moving parts insures quiet maintenance-free operation.
- hooks: None

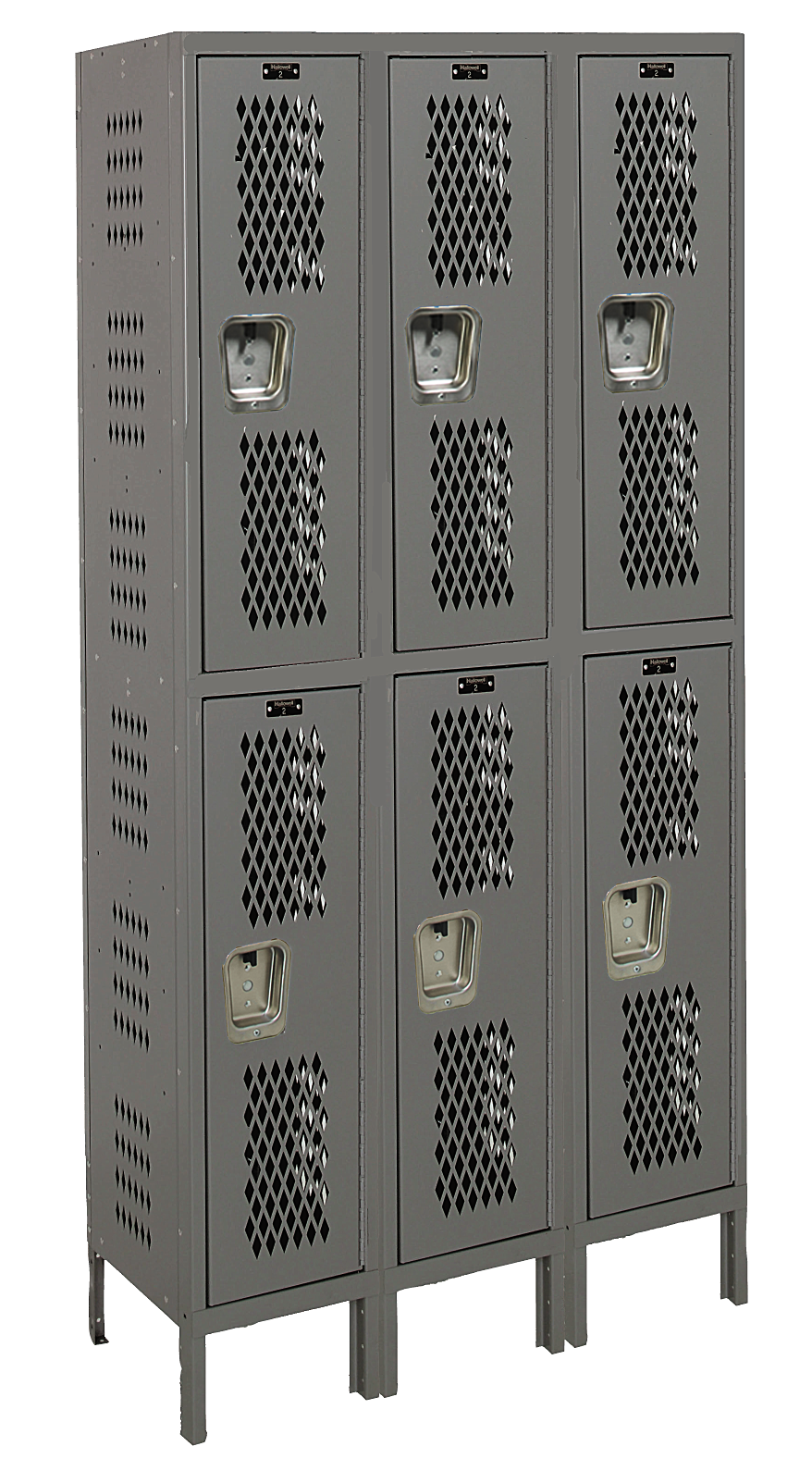

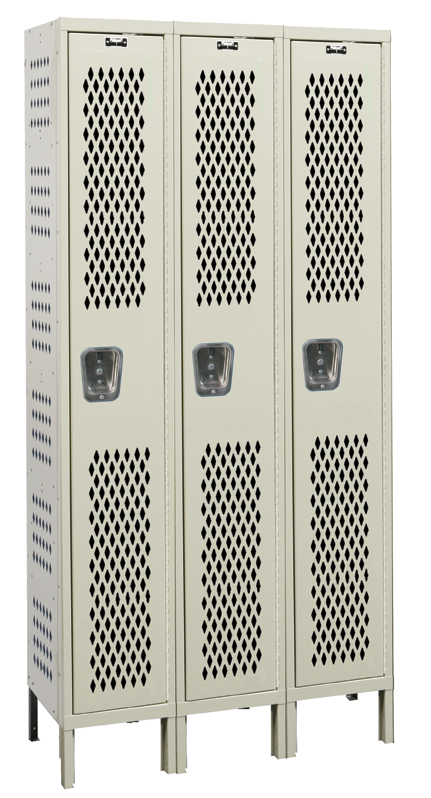

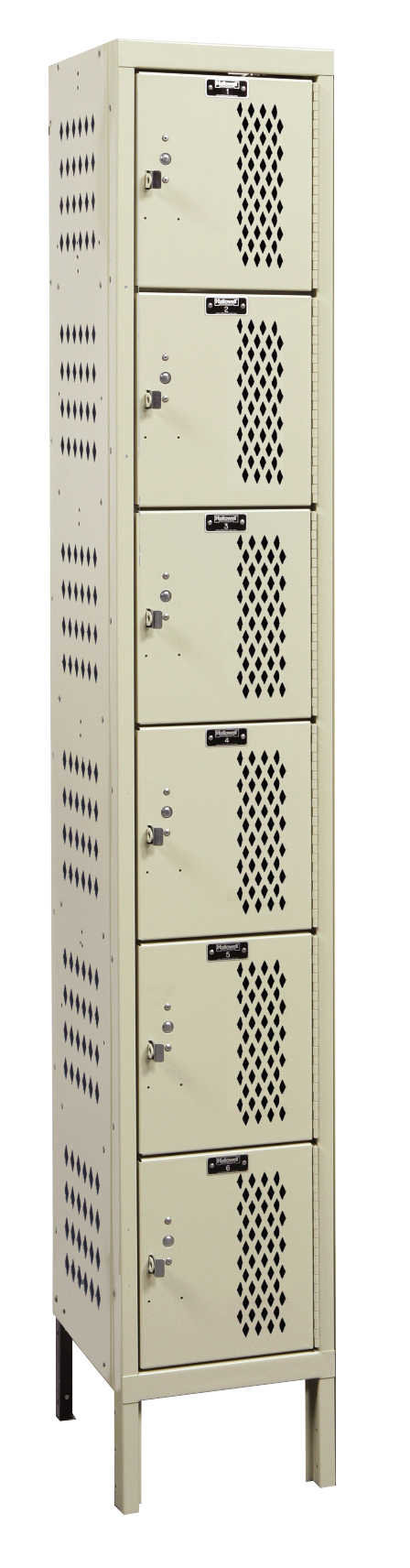

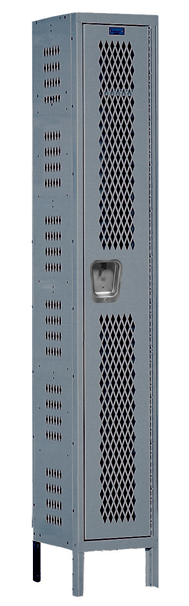

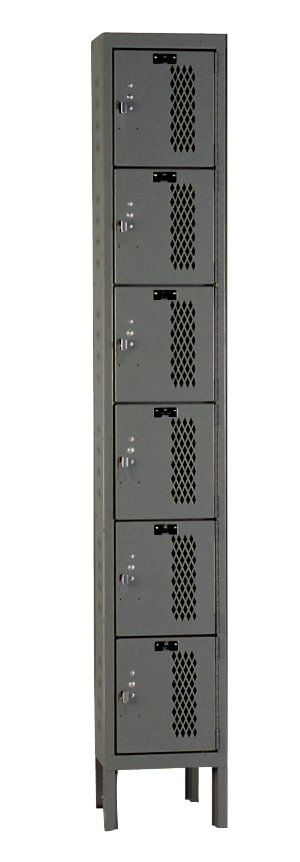

Photos:
