Heavy-Duty Ventilated (HDV) KD Wardrobe Lockers
Affordability and Functionality in One Locker
Heavy-Duty Ventilated KD lockers, commonly known as HDV lockers, are the perfect solution when budget restrictions prevent the use of fully-framed all-welded lockers.
HDV lockers are sold in various colors and multiple tier wardrobe & box options.
Features (Wardrobe & Box lockers):
- body construction: Knock down (KD) with 16 gauge solid top, bottom and intermediate shelves, 16 gauge diamond perforated sides, 18 gauge solid back

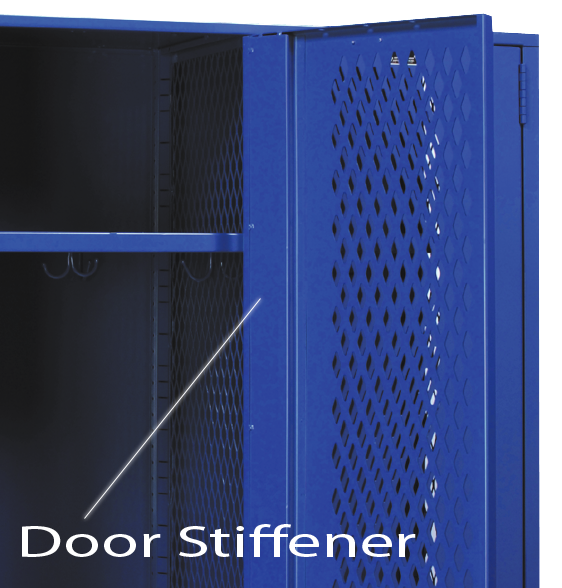

- doors: 14 gauge diamond perforated doors are standard. Louvered, Security-Plus and plain door styles are available
- frame: 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers
- hinges: 16 gauge continuous piano type
- door strike: Continuous vertical door strike at both hinge and latch side
- notes: All production KD lockers are supplied without legs unless otherwise specified
- warranty: 2 years
Wardrobe Lockers (doors 20" and higher):

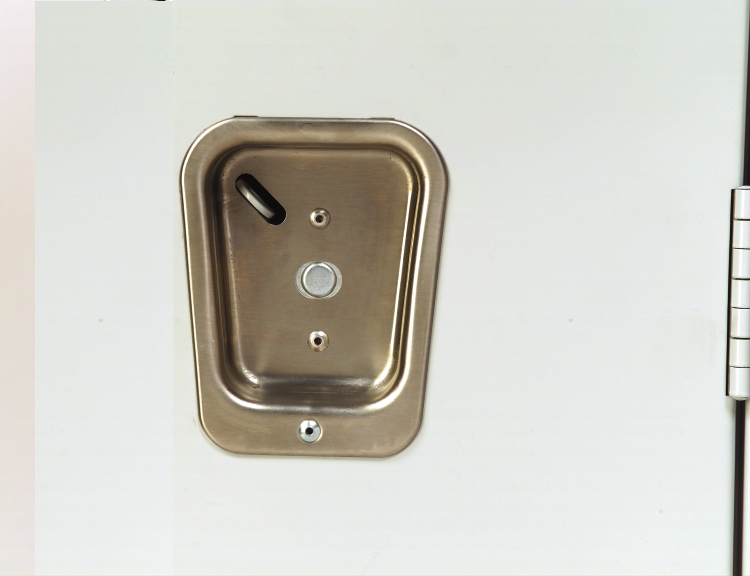

- handle: Deep-drawn seamless stainless steel recessed handle
- latching: Gravity lift-type multi-point spring loaded latching:
- 3-point latching for openings 48" high and higher
- 2 point latching for openings 20" high thru 36" high
- hooks: 2-single hooks and 1-double hook is standard.
- 1- double hook only for triple tier
- 1 - single hook for 9" wide openings 30" and higher
- shelves: 16 gauge hat shelf for single tier openings 60" and 72" high
Box Lockers (doors 18" and lower):
- handle: Single-point thru-the-door finger pull padlock hasp
- hooks: None
Wardrobe Locker Sizes:
Tier |
Width |
Depth |
Opening Height |
Frame Height |
Single | 9", 12", 15", 18", 24" | 12", 15", 18", 21", 24" | 36", 48", 60", 72" | 36", 48", 60", 72" |

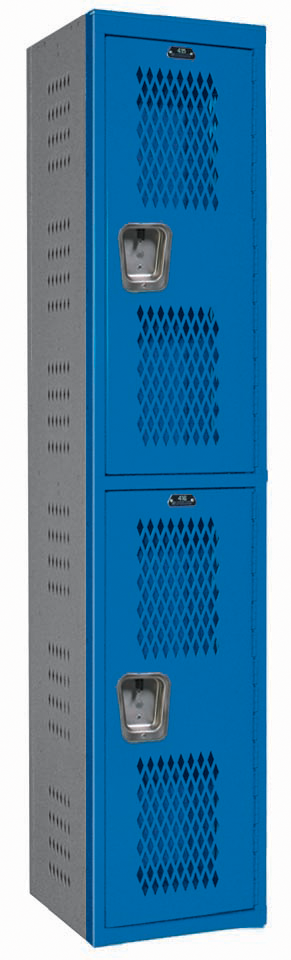

Double | 9", 12", 15", 18" | 12", 15", 18", 21", 24" | 30", 36" | 60", 72" |

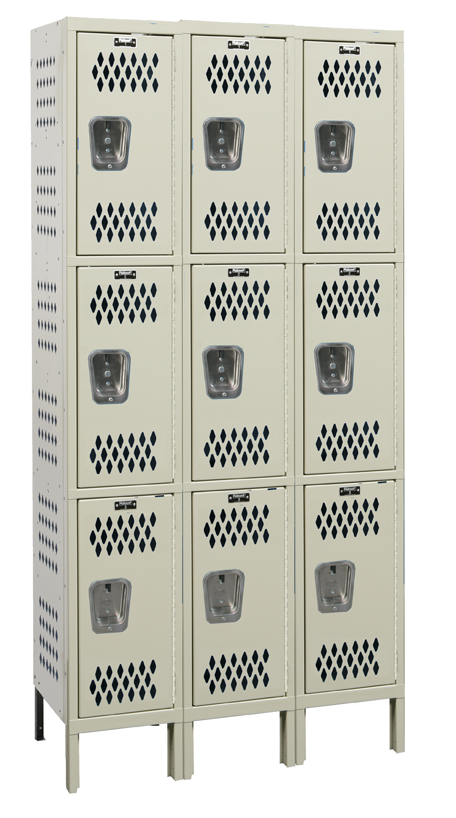

Triple | 9", 12", 15" | 12", 15", 18", 21", 24" | 20", 24" | 60", 72" |
Box Locker Sizes:
Tier |
Width |
Depth |
Opening Height |
Frame Height |
Four | 12", 15" | 12", 15", 18" | 15", 18" | 60", 72" |
Five | 12", 15" | 12", 15", 18" | 12", 12.4" | 60", 72" |

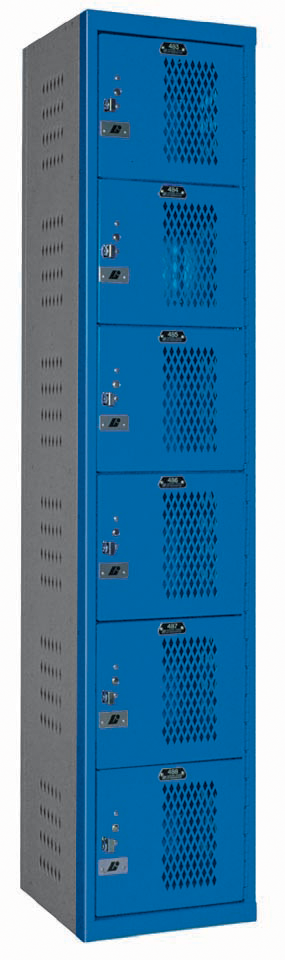

Six | 12", 15" | 12", 15", 18" | 12" | 72" |
- HDV KD Specifications
GREENGUARD Certificates:
Photos:
