Athletic Team Fully-Framed All-Welded Lockers
Athletic Team lockers are available in three different standard configurations depending on your facility needs. Varsity single-tier lockers, Jr. Varsity double-tier lockers or Intramural triple tier lockers.

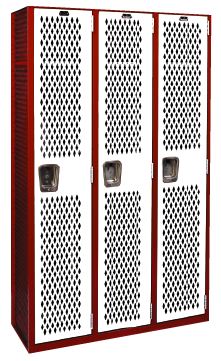

Varsity Single Tier Athletic Lockers
Designed with the athlete in mind, Varsity single tier lockers are highly recommended for varsity team rooms. Varsity lockers are engineered to withstand excessive abuse. These lockers are also excellent in combination with P.E. lockers.
SINGLE TIER - Varsity Locker Sizes: |
||
Widths: | 9", 12", 15", 18", 24" | |
Depths: | 12", 16", 18", 22" | |
Nominal Column Heights: | 36", 48", 60", 72" | |
Notes: | ||
- Actual locker column height is 2-3/4" over nominal column heights shown. | ||
- 18" & 24" All-Welded Lockers are only available in Premier Series (including full height door stiffener). | ||
- All-welded lockers will ship in multiple column units up to 60" wide to meet individual jobsite conditions. | ||
- actual column width chart |

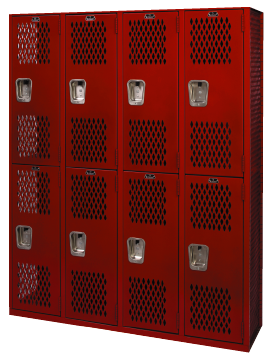

Jr. Varsity Double Tier Athletic Lockers
Jr. Varsity double tier athletic lockers are ideal when budget or space limitations apply. Double tier lockers can be used in team rooms as well as in P.E. rooms in combination with P.E. Lockers.
DOUBLE TIER - Jr. Varsity Locker Sizes: |
||
Widths: | 9", 12", 15", 18", 24" | |
Depths: | 12", 16", 18", 22" | |
Opening Heights: | 24", 30", 35" | |
Nominal Column Heights: | 48", 60", 72" | |
Notes: | ||
- Actual locker column height is 2-3/4" over nominal column heights shown. | ||
- 18" & 24" All-Welded Lockers are only available in Premier Series (including full height door stiffener). | ||
- All-welded lockers will ship in multiple column units up to 60" wide to meet individual jobsite conditions. | ||
- actual column width chart |

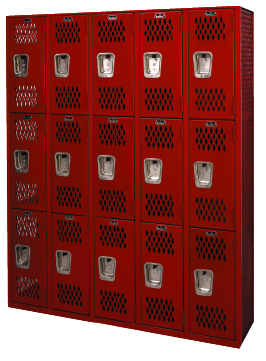

Intramural Triple Tier Athletic Lockers
Intramural triple tier athletic lockers are ideal when space and/or funds are limited. The opening height allows clothing to hang on hooks allowing better ventilation than a smaller P.E. locker. Intramural lockers are also ideal for use in combination with P.E. lockers.
TRIPLE TIER - Intramural Locker Sizes: |
||
Widths: | 9", 12", 15", 18", 24" | |
Depths: | 12", 16", 18", 22" | |
Opening Heights: | 20", 24" | |
Nominal Column Heights: | 60", 72" | |
Notes: | ||
- Actual locker column height is 2-3/4" over nominal column heights shown. | ||
- 18" & 24" All-Welded Lockers are only available in Premier Series (including full height door stiffener). | ||
- All-welded lockers will ship in multiple column units up to 60" wide to meet individual jobsite conditions. | ||
- actual column width chart |
Features:
- body construction: Fully-framed all-welded Hollow-T construction, 13 gauge 1/2" fully-framed flattened expanded metal sides, 16 gauge continuous top, 18 gauge solid back, 16 gauge galvanneal bottom
- doors: 14 gauge diamond perforated doors are standard. Plain, louvered and Security-Plus door styles are available

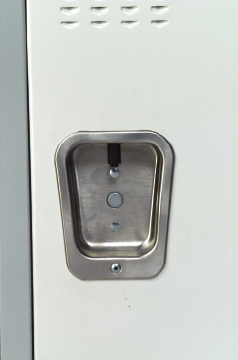

- handle: Deep-drawn seamless stainless steel recessed handle. Optional
projecting 3-point turn-handle is available. - latching: 11 gauge latch hooks with riveted on bumper MIG welded to Hollow-T frame. Gravity lift-type multi-point spring loaded latching:
• 3-point latching for openings 48" high and higher
• 2-point latching for openings 20" high thru 36" high - hinges: Heavy-duty 13 gauge 7-knuckle 3-1/2" hinges:
• 3-hinges per opening 48" high and higher
• 2-hinges per opening 20" high thru 36" high - shelves: 16 gauge galvanneal hat shelf for Varsity openings 60" and 72" high, 16 gauge galvanneal intermediate shelves
- hooks: 2-single hooks and 1-double hook is standard. 1-double hook only for triple tier and 1-double and 1-single hook for 9" wide openings 30" and higher
- warranty: Lifetime
- sizes: See chart with locker descriptions for sizes.
-
specifications
