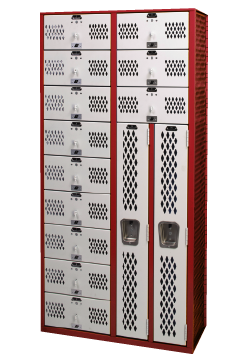

Space Management with the PE 9E unit
This unit is a favorite among architects, coaches and physical education instructors across the country. Superior Class 9E lockers accommodate 12 students in a compact three linear feet of space utilizing the popular and space-saving ventilated box locker model. The benefit is that each locker where physical education clothing is stored is a full 18" wide x 8" high.
All doors are shown with optional padlock strike plates which protect finish from being marred by padlock.

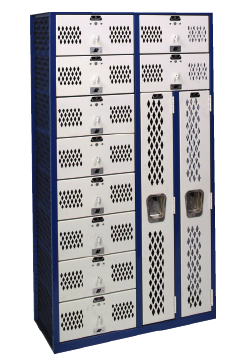

Space Management with the 8D Unit (5:1 Ratio)
Superior Class 8D lockers are designed with the same premise as the 9E. We have engineered the finest 5:1 ratio P.E. unit in the locker industry utilizing the same floor space as a standard "626" configuration. This locker is a nominal 60" high as opposed to 48". The Class 8D lockers are 18" wide x 8" high and the wardrobe lockers are 9" wide x 48" high.
Standard Class 626 unit size:
36" wide x (12", 16", 18", 22") deep x 60" high
Widths for all box locker openings: 12", 15", 18"
Depths for all gym locker openings: 12", 16", 18", 22"
Tier |
Opening Height |
Nominal Column Heights |
| 4 | 8", 9", 12", 15", 18" | 32", 36" 48", 72" |
| 5 | 12" ,(4) 15" & (1) 12" | 60", 72" |
| 6 | 8", 10", 12" | 48", 60", 72" |
| 7 | (6) 10" & (1) 12" | 72" |
| 8 | 8", 9" | 64", 72" |
| 9 | 8" | 72" |
| Notes: | ||
| - Actual locker column height is 2-3/4" over nominal column heights shown. | ||
| - All-welded lockers will ship in multiple column units up to 60" wide to meet individual jobsite conditions. | ||
- actual column width chart | ||

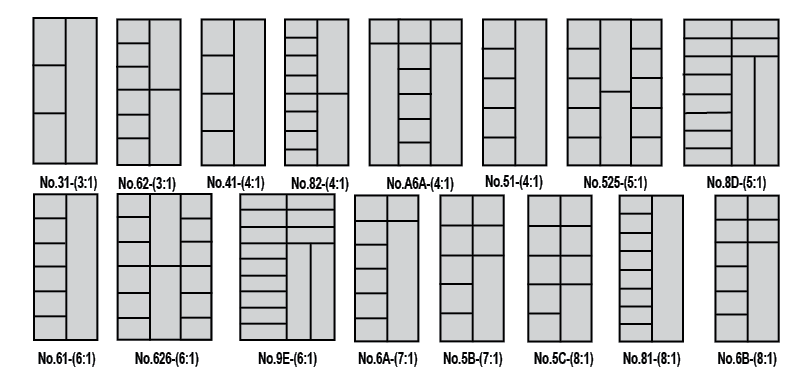

Typical Superior® P.E. Locker Combinations:
