Components:

Special Triple Brace Clip Provides a strong and ridged anchor point for the cross braces.

All Models shown with the standard base plate that provides a strong and secure anchoring point

Heavy Duty Shelves Tubular welded box beam front and rear for maximum strength Exclusive triple bend side flanges for added strength Lapped and welded corners Top of shelf is punched to accept shelf dividers Uses four one piece shelf clips per shelf Can be installed together with both

H-Posts Designed for high-density applications More than twice the capacity of standard posts Used at front and back Used with standard Hi-Tech components

One Piece Shelf Clip Each shelf requires four of these sturdy and compact clips Clips key firmly into post slots to hold shelves securely in place Fits Beaded Front, Angle Back Posts and T-Posts Provides independent shelf positioning on 1-1/2" centers Non-intrusive clip sits flush with inside edge of front posts

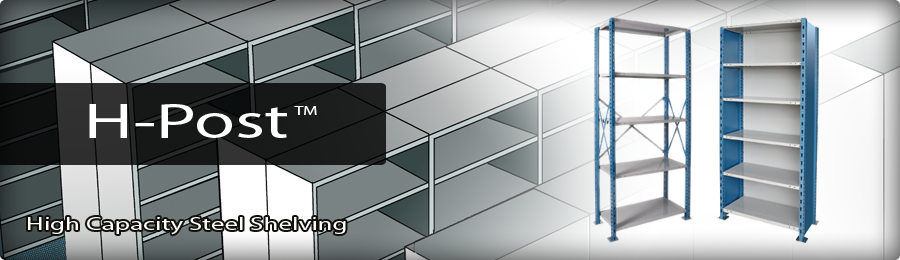

H-Post™ - High Capacity Shelving

H-Post High Capacity Shelving is part of the HI-Tech Shelving System and is ideal when additional strength is required for any shelving installation. It is also recommended for multi-level high-rise applications.

H-Posts are fabricated from 14 gauge cold rolled steel and formed into a unique tubular design to provide more than twice the load capacity compared to standard posts.

Hi-Tech Shelving is a complete shelving line with the strength needed to handle most industrial applications with the versatility needed for today's modern facilities. Every shelving unit is designed and engineered to handle daily use for a lifetime without loosing it's integrity.

A full compliment of accessories including full dividers, partial dividers, label holders, swinging doors, post splices for multilevel systems and foot plates are available to complete your steel shelf system.

QUICKSHIP: 5 day shipping on all in stock shelving!

All Hi-Tech™ shelving comes in starter and/or adder units to allow for customization to any specification. In addition to free-standing, the Hi-Tech steel shelving units can be bolted side by side or back to back to create the best storage solution for your garage, warehouse, storage unit, stock room or other space.

Each Hi-Tech metal heavy-duty shelf has a tubular welded box beam in front and rear for maximum strength, exclusive triple bend side flanges for even more strength, lapped and welded corners, and the shelves are punched to accept shelf dividers. Each shelf is installed using only 4 shelf clips and can be installed together with both beaded front and angle back posts as well as T-posts and H-posts. Hi-Tech Steel Shelving is perfect for most medium-duty and heavy-duty product, tool and gear storage.

Hi-Tech H-Post shelving systems have been specially designed to allow for fast and easy assembly.

Open Starter units include:
Starter units include four posts, one back sway brace assembly, two side sway brace assemblies and 5-8 shelves.

Open Adder units include:
Adder units include two posts, one back sway brace assembly, one side sway brace assembly and 5-8 shelves.

Closed Starter units include:
Starter units include four posts, one back panel assembly, two side panel assemblies and 5-8 shelves.

Closed Adder units include:
Adder units include two posts, one back panel assembly, one side panel assembly and 5-8 shelves.

All posts, side sway braces, side panels are 707 Marine Blue [MB].
All shelves, back sway braces, back panels are 711 Platinum [PL]

• H-Post Open Shelving Catalog

• H-Post Closed Shelving Catalog

• H-Post Specifications
